Hey all, got a notification to update to 1.6.0-beta1 this morning. Update went smooth, and rebooted just fine. All my apps came up as expected etc. Only thing i noticed, is that on my Unifi switch, my Zima machine (Mac Mini (2018) ) is plugged into a 10GB SFP. On my switch, shows 10GB, but in the network settings in ZimaOS, shows only as 1GB. - was showing 10GB previously on 1.5.4
Not the end of the world, just thought i would bring it up! Excited for v1.6!
FYI - Same thing still happening on Beta 2 … even after multiple reboots.

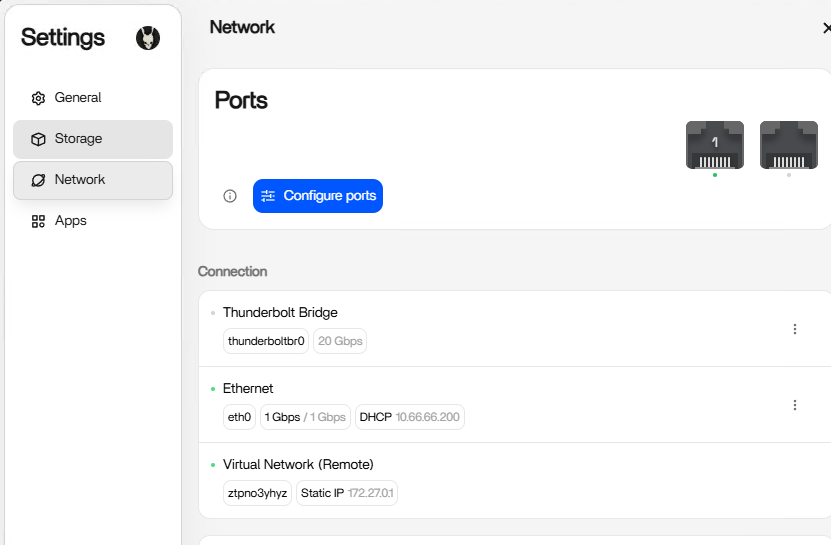

Thanks for your feedback, please provide screenshots of Settings-Network, then execute the following command on the command line, then go to Files to find the network.log file and send it to us
{
echo "=== [1/5] curl http://127.0.0.1/v2/zimaos/network/interfaces ===";
curl -s http://127.0.0.1/v2/zimaos/network/interfaces;
echo -e "\n=== [2/5] nmcli ===";
nmcli;
echo -e "\n=== [3/5] lshw ===";
lshw;
echo -e "\n=== [4/5] lspci ===";
lspci;
echo -e "\n=== [5/5] lsusb ===";
lsusb;
} > /DATA/network.log 2>&1 && \
echo "Please open the Files application, locate the file 'network.log' under the ZimaOS-HD directory, and send it to IceWhale technical support."
Hi there Dina,
Thanks for getting back to me!
Here is the info below:
Got a message that new users cannot upload attachments… here is the output of the network.log file:
=== [1/5] curl http://127.0.0.1/v2/zimaos/network/interfaces ===
[{“connect_type”:“Thunderbolt Bridge”,“index”:13,“mac”:“ce:5d:95:b1:30:38”,“model”:“Mac-7BA5B2DFE22DDD8C”,“name”:“thunderboltbr0”,“negotiated_speed”:0,“order”:1,“theoretical_speed”:20000000000},{“connect_type”:“Ethernet”,“index”:1,“ip”:“10.66.66.200”,“mac”:“28:ec:95:09:d9:f4”,“method”:“DHCP”,“model”:“Mac-7BA5B2DFE22DDD8C”,“name”:“eth0”,“negotiated_speed”:1000000000,“order”:0,“product”:“NetXtreme BCM57766 Gigabit Ethernet PCIe”,“theoretical_speed”:1000000000,“vendor”:“Broadcom Inc. and subsidiaries”},{“connect_type”:“Virtual Network (Remote)”,“index”:51,“ip”:“172.27.0.1”,“mac”:“42:64:b1:50:00:50”,“method”:“Static IP”,“model”:“Mac-7BA5B2DFE22DDD8C”,“name”:“ztpno3yhyz”,“negotiated_speed”:0,“order”:0,“theoretical_speed”:0},{“index”:11,“ip”:“”,“model”:“Mac-7BA5B2DFE22DDD8C”,“name”:“”,“negotiated_speed”:0,“order”:0,“product”:“Thunderbolt”,“theoretical_speed”:20000000000,“vendor”:“Inter”},{“index”:12,“ip”:“”,“model”:“Mac-7BA5B2DFE22DDD8C”,“name”:“”,“negotiated_speed”:0,“order”:0,“product”:“Thunderbolt”,“theoretical_speed”:20000000000,“vendor”:“Inter”}]
=== [2/5] nmcli ===
eth0: connected to ZimaCube-eth0
“Broadcom and subsidiaries NetXtreme BCM57766”
ethernet (tg3), 28:EC:95:09:D9:F4, hw, mtu 1500
ip4 default
inet4 10.66.66.200/24
route4 10.66.66.0/24 metric 100
route4 default via 10.66.66.254 metric 100
inet6 fd95:2406:b116:ae1c:70fe:297c:5770:16f9/64
inet6 fe80::8e8e:3ff3:9ef4:4955/64
route6 fe80::/64 metric 1024
route6 fd95:2406:b116:ae1c::/64 metric 100
route6 fded:d99b:e4f1:1::/64 via fe80::1a1f:bc74:f46:3e43 metric 100
thunderboltbr0: connected to thunderboltbr0
“thunderboltbr0”
bridge, CE:5D:95:B1:30:38, sw, mtu 65520
inet4 169.254.205.171/16
route4 default via 169.254.0.1 metric 425
route4 169.254.0.0/16 metric 425
ztpno3yhyz: connected (externally) to ztpno3yhyz
“ztpno3yhyz”
tun, 42:64:B1:50:00:50, sw, mtu 2800
inet4 172.27.0.1/16
route4 172.27.0.0/16 metric 0
inet6 fe80::4064:b1ff:fe50:50/64
inet6 fd70:60b:b5b:b714:4299:9370:60b:b5b/88
route6 fd70:60b:b5b:b714:4299:9300::/88 metric 256
route6 fe80::/64 metric 256
br-6e258489941f: connected (externally) to br-6e258489941f
“br-6e258489941f”
bridge, 02:42:96:48:E0:8F, sw, mtu 1500
inet4 172.18.0.1/16
route4 172.18.0.0/16 metric 0
inet6 fe80::42:96ff:fe48:e08f/64
route6 fe80::/64 metric 256
br-8c8a0faf596f: connected (externally) to br-8c8a0faf596f
“br-8c8a0faf596f”
bridge, 02:42:0A:44:78:72, sw, mtu 1500
inet4 172.19.0.1/16
route4 172.19.0.0/16 metric 0
inet6 fe80::42:aff:fe44:7872/64
route6 fe80::/64 metric 256
br-dd349d622095: connected (externally) to br-dd349d622095
“br-dd349d622095”
bridge, 02:42:5F:3B:75:C8, sw, mtu 1500
inet4 172.21.0.1/16
route4 172.21.0.0/16 metric 0
inet6 fe80::42:5fff:fe3b:75c8/64
route6 fe80::/64 metric 256
br-f39ea243e696: connected (externally) to br-f39ea243e696
“br-f39ea243e696”
bridge, 02:42:1A:0D:43:55, sw, mtu 1500
inet4 172.20.0.1/16
route4 172.20.0.0/16 metric 0
inet6 fe80::42:1aff:fe0d:4355/64
route6 fe80::/64 metric 256
docker0: connected (externally) to docker0
“docker0”
bridge, 02:42:78:7B:C6:18, sw, mtu 1500
inet4 172.17.0.1/16
route4 172.17.0.0/16 metric 0
inet6 fe80::42:78ff:fe7b:c618/64
route6 fe80::/64 metric 256
lo: connected (externally) to lo
“lo”
loopback (unknown), 00:00:00:00:00:00, sw, mtu 65536
inet4 127.0.0.1/8
inet6 ::1/128
virbr0: connected (externally) to virbr0
“virbr0”
bridge, 52:54:00:43:4E:01, sw, mtu 1500
inet4 192.168.122.1/24
route4 192.168.122.0/24 metric 0
dummy0: unmanaged
“dummy0”
dummy, 02:32:F7:15:F8:EF, sw, mtu 1500
veth033d3d2: unmanaged
“veth033d3d2”
ethernet (veth), D2:C0:3D:75:66:35, sw, mtu 1500
veth347c88a: unmanaged
“veth347c88a”
ethernet (veth), DA:D0:55:1E:8B:53, sw, mtu 1500
veth454557b: unmanaged
“veth454557b”
ethernet (veth), EA:B0:A7:41:2F:F7, sw, mtu 1500
veth459b6b7: unmanaged
“veth459b6b7”
ethernet (veth), 9A:AB:82:80:50:BC, sw, mtu 1500
veth5d876b1: unmanaged
“veth5d876b1”
ethernet (veth), B6:AA:EF:AA:A9:DE, sw, mtu 1500
veth7cd7969: unmanaged
“veth7cd7969”
ethernet (veth), 46:8E:C6:4E:E5:00, sw, mtu 1500
veth9272b66: unmanaged
“veth9272b66”
ethernet (veth), BA:19:52:C3:6C:74, sw, mtu 1500
vethaa0f230: unmanaged
“vethaa0f230”
ethernet (veth), 32:7C:25:8B:8B:EA, sw, mtu 1500
vethbbba98f: unmanaged
“vethbbba98f”
ethernet (veth), 06:6B:C4:E2:F3:69, sw, mtu 1500
vethf53ff5f: unmanaged
“vethf53ff5f”
ethernet (veth), 26:93:90:10:C6:E9, sw, mtu 1500
DNS configuration:
servers: 10.66.66.220 10.66.66.225 10.66.66.254
domains: SkyNet
interface: eth0
Use “nmcli device show” to get complete information about known devices and
“nmcli connection show” to get an overview on active connection profiles.
Consult nmcli(1) and nmcli-examples(7) manual pages for complete usage details.
=== [3/5] lshw ===
zimaos
description: Laptop
product: Macmini8,1
vendor: Apple Inc.
version: 1.0
serial: H2WGR0SEJYVY
width: 64 bits
capabilities: smbios-3.3.0 dmi-3.3.0 smp vsyscall32
configuration: boot=normal chassis=laptop family=Mac mini uuid=790f30e7-c979-5f10-a2d3-9e5dab17fdd0
*-core
description: Motherboard
product: Mac-7BA5B2DFE22DDD8C
vendor: Apple Inc.
physical id: 0
version: Macmini8,1
serial: H28146200L0JRN1D3
*-memory
description: System Memory
physical id: 0
slot: System board or motherboard
size: 32GiB
*-bank:0
description: SODIMM DDR4 Synchronous 2667 MHz (0.4 ns)
product: 16ATF2G64HZ-2G6E3
vendor: Micron
physical id: 0
serial: 2AAEF58A
slot: ChannelA-DIMM0
size: 16GiB
width: 64 bits
clock: 2667MHz (0.4ns)
*-bank:1
description: SODIMM DDR4 Synchronous 2667 MHz (0.4 ns)
product: 16ATF2G64HZ-2G6E3
vendor: Micron
physical id: 1
serial: 2AAEFDB4
slot: ChannelB-DIMM0
size: 16GiB
width: 64 bits
clock: 2667MHz (0.4ns)
*-firmware
description: BIOS
vendor: Apple Inc.
physical id: 4
version: 2094.80.5.0.0 (iBridge: 23.16.13120.0.0,0)
date: 01/21/2026
size: 1MiB
capacity: 8MiB
capabilities: pci upgrade shadowing cdboot bootselect acpi smartbattery netboot uefi
*-cache:0
description: L1 cache
physical id: 1c
slot: L1 Cache
size: 384KiB
capacity: 384KiB
capabilities: synchronous internal write-back unified
configuration: level=1
*-cache:1
description: L2 cache
physical id: 1d
slot: L2 Cache
size: 1536KiB
capacity: 1536KiB
capabilities: synchronous internal write-back unified
configuration: level=2
*-cache:2
description: L3 cache
physical id: 1e
slot: L3 Cache
size: 12MiB
capacity: 12MiB
capabilities: synchronous internal write-back unified
configuration: level=3
*-cpu
description: CPU
product: Intel(R) Core™ i7-8700B CPU @ 3.20GHz
vendor: Intel Corp.
physical id: 1f
bus info: cpu@0
version: 6.158.10
serial: To Be Filled By O.E.M.
slot: U3E1
size: 4GHz
capacity: 4600MHz
width: 64 bits
clock: 100MHz
capabilities: lm fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx pdpe1gb rdtscp x86-64 constant_tsc art arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc cpuid aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx smx est tm2 ssse3 sdbg fma cx16 xtpr pdcm pcid sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave avx f16c rdrand lahf_lm abm 3dnowprefetch cpuid_fault epb pti ssbd ibrs ibpb stibp tpr_shadow flexpriority ept vpid ept_ad fsgsbase tsc_adjust bmi1 avx2 smep bmi2 erms invpcid mpx rdseed adx smap clflushopt intel_pt xsaveopt xsavec xgetbv1 xsaves dtherm ida arat pln pts hwp hwp_act_window hwp_epp vnmi md_clear flush_l1d arch_capabilities cpufreq
configuration: cores=6 enabledcores=6 microcode=250 threads=12
*-pci
description: Host bridge
product: 8th Gen Core Processor Host Bridge/DRAM Registers
vendor: Intel Corporation
physical id: 100
bus info: pci@0000:00:00.0
version: 07
width: 32 bits
clock: 33MHz
configuration: driver=skl_uncore
resources: irq:0
*-pci:0
description: PCI bridge
product: 6th-10th Gen Core Processor PCIe Controller (x16)
vendor: Intel Corporation
physical id: 1
bus info: pci@0000:00:01.0
version: 07
width: 32 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:26
*-pci:1
description: PCI bridge
product: Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor PCIe Controller (x8)
vendor: Intel Corporation
physical id: 1.1
bus info: pci@0000:00:01.1
version: 07
width: 32 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:27 ioport:4000(size=16384) memory:81700000-8f8fffff ioport:b1400000(size=234881024)
*-pci
description: PCI bridge
product: DSL6540 Thunderbolt 3 Bridge [Alpine Ridge 4C 2015]
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:05:00.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:17 ioport:4000(size=16384) memory:81700000-8f8fffff ioport:b1400000(size=234881024)
*-pci:0
description: PCI bridge
product: JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:06:00.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:32 memory:81800000-818fffff
*-generic
description: System peripheral
product: JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:07:00.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pm msi pciexpress msix bus_master cap_list
configuration: driver=thunderbolt latency=0
resources: irq:17 memory:81800000-8183ffff memory:81840000-81840fff
*-pci:1
description: PCI bridge
product: JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 1
bus info: pci@0000:06:01.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:33 ioport:4000(size=8192) memory:81900000-888fffff ioport:b1400000(size=117440512)
*-pci:2
description: PCI bridge
product: JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 2
bus info: pci@0000:06:02.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:34 memory:81700000-817fffff
*-usb
description: USB controller
product: JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:08:00.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pm msi pciexpress xhci bus_master cap_list
configuration: driver=xhci_hcd latency=0
resources: irq:49 memory:81700000-8170ffff
*-usbhost:0
product: xHCI Host Controller
vendor: Linux 6.12.25 xhci-hcd
physical id: 0
bus info: usb@3
logical name: usb3
version: 6.12
capabilities: usb-2.00
configuration: driver=hub slots=2 speed=480Mbit/s
*-usbhost:1
product: xHCI Host Controller
vendor: Linux 6.12.25 xhci-hcd
physical id: 1
bus info: usb@4
logical name: usb4
version: 6.12
capabilities: usb-3.10
configuration: driver=hub slots=2 speed=10000Mbit/s
*-usb
description: Mass storage device
product: ROG STRIX Arion
vendor: ASUS
physical id: 1
bus info: usb@4:1
logical name: scsi0
version: 1.00
serial: RCD0AP011447
capabilities: usb-3.20 scsi emulated scsi-host
configuration: driver=usb-storage speed=10000Mbit/s
*-disk
description: SCSI Disk
product: ESD-S1C
vendor: ROG
physical id: 0.0.0
bus info: scsi@0:0.0.0
logical name: /dev/sda
version: 0
serial: 744110PA0DCR
size: 953GiB (1024GB)
capabilities: gpt-1.00 partitioned partitioned:gpt
configuration: ansiversion=6 guid=9496f138-bfbd-43de-947b-0730a5722225 logicalsectorsize=512 sectorsize=512
*-volume:0 UNCLAIMED
description: Windows FAT volume
vendor: mkfs.fat
physical id: 1
bus info: scsi@0:0.0.0,1
version: FAT16
serial: 62eb-bda7
size: 31MiB
capacity: 31MiB
capabilities: boot fat initialized
configuration: FATs=2 filesystem=fat label=casaos-boot name=casaos-boot
*-volume:1
description: EFI partition
physical id: 2
bus info: scsi@0:0.0.0,2
logical name: /dev/sda2
serial: 26700fc6-b0bc-4ccf-9837-ea1a4cba3e65
capacity: 23MiB
configuration: name=casaos-kernel0
*-volume:2
description: EFI partition
physical id: 3
bus info: scsi@0:0.0.0,3
logical name: /dev/sda3
serial: 8d3d53e3-6d49-4c38-8349-aff6859e82fd
capacity: 6143MiB
configuration: name=casaos-system0
*-volume:3
description: EFI partition
physical id: 4
bus info: scsi@0:0.0.0,4
logical name: /dev/sda4
serial: fc02a4f0-5350-406f-93a2-56cbed636b5f
capacity: 23MiB
configuration: name=casaos-kernel1
*-volume:4
description: EFI partition
physical id: 5
bus info: scsi@0:0.0.0,5
logical name: /dev/sda5
serial: a3ec664e-32ce-4665-95ea-7ae90ce9aa20
capacity: 6143MiB
configuration: name=casaos-system1
*-volume:5
description: EFI partition
physical id: 6
bus info: scsi@0:0.0.0,6
logical name: /dev/sda6
serial: 33236519-7f32-4dff-8002-3390b62c309d
capacity: 8191KiB
configuration: name=casaos-bootstate
*-volume:6
description: EXT4 volume
vendor: Linux
physical id: 7
bus info: scsi@0:0.0.0,7
logical name: /dev/sda7
logical name: /mnt/overlay
logical name: /var/lib/rauc
logical name: /var/lib/zerotier-one
version: 1.0
serial: 32f2cd94-78ea-4358-a8c3-93a7dc70489f
size: 96MiB
capabilities: journaled extended_attributes large_files huge_files dir_nlink recover 64bit extents ext4 ext2 initialized
configuration: created=2026-03-24 11:45:08 filesystem=ext4 label=casaos-overlay lastmountpoint=/mnt/overlay modified=2026-04-02 09:54:58 mount.fstype=ext4 mount.options=rw,relatime mounted=2026-04-02 09:54:58 name=casaos-overlay state=mounted
*-volume:7
description: EXT4 volume
vendor: Linux
physical id: 8
bus info: scsi@0:0.0.0,8
logical name: /dev/sda8
logical name: /var/lib/casaos_data
logical name: /DATA
logical name: /media
logical name: /var/lib/bluetooth
logical name: /opt
logical name: /var/lib/docker
logical name: /var/lib/casaos
logical name: /var/lib/extensions
logical name: /var/lib/icewhale
logical name: /var/lib/libvirt
logical name: /var/log
version: 1.0
serial: 1aca8adc-bc86-41be-aa79-aa451a8f9a17
size: 941GiB
capacity: 941GiB
capabilities: journaled extended_attributes large_files huge_files dir_nlink recover 64bit extents ext4 ext2 initialized
configuration: created=2026-03-24 11:45:09 filesystem=ext4 label=casaos-data lastmountpoint=/var/log modified=2026-04-02 09:55:19 mount.fstype=ext4 mount.options=rw,relatime,commit=30 mounted=2026-04-02 09:55:19 name=casaos-data state=mounted
*-pci:3
description: PCI bridge
product: JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 4
bus info: pci@0000:06:04.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:35 ioport:6000(size=8192) memory:88900000-8f8fffff ioport:b8400000(size=117440512)
*-pci:2
description: PCI bridge
product: Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor PCIe Controller (x4)
vendor: Intel Corporation
physical id: 1.2
bus info: pci@0000:00:01.2
version: 07
width: 32 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:28 ioport:8000(size=16384) memory:8f900000-9dafffff ioport:bf400000(size=234881024)
*-pci
description: PCI bridge
product: DSL6540 Thunderbolt 3 Bridge [Alpine Ridge 4C 2015]
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:7b:00.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:18 ioport:8000(size=16384) memory:8f900000-9dafffff ioport:bf400000(size=234881024)
*-pci:0
description: PCI bridge
product: JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:7c:00.0
logical name: /dev/fb0
version: 06
width: 64 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list fb
configuration: depth=32 driver=pcieport mode=1920x1080 visual=truecolor xres=1920 yres=1080
resources: iomemory:1f10-1f0f irq:36 memory:8fa00000-8fafffff
*-generic
description: System peripheral
product: JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:7d:00.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pm msi pciexpress msix bus_master cap_list
configuration: driver=thunderbolt latency=0
resources: irq:18 memory:8fa00000-8fa3ffff memory:8fa40000-8fa40fff
*-pci:1
description: PCI bridge
product: JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 1
bus info: pci@0000:7c:01.0
version: 06
width: 64 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: iomemory:91810-9180f irq:37 ioport:8000(size=8192) memory:8fb00000-96afffff ioport:bf400000(size=117440512)
*-pci:2
description: PCI bridge
product: JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 2
bus info: pci@0000:7c:02.0
version: 06
width: 64 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: iomemory:1f10-1f0f irq:38 memory:8f900000-8f9fffff
*-usb
description: USB controller
product: JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 0
bus info: pci@0000:7e:00.0
version: 06
width: 32 bits
clock: 33MHz
capabilities: pm msi pciexpress xhci cap_list
configuration: driver=xhci_hcd latency=0
resources: irq:57 memory:8f900000-8f90ffff
*-usbhost:0
product: xHCI Host Controller
vendor: Linux 6.12.25 xhci-hcd
physical id: 0
bus info: usb@5
logical name: usb5
version: 6.12
capabilities: usb-2.00
configuration: driver=hub slots=2 speed=480Mbit/s
*-usbhost:1
product: xHCI Host Controller
vendor: Linux 6.12.25 xhci-hcd
physical id: 1
bus info: usb@6
logical name: usb6
version: 6.12
capabilities: usb-3.10
configuration: driver=hub slots=2 speed=10000Mbit/s
*-pci:3
description: PCI bridge
product: JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018]
vendor: Intel Corporation
physical id: 4
bus info: pci@0000:7c:04.0
version: 06
width: 64 bits
clock: 33MHz
capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
configuration: driver=pcieport
resources: iomemory:b1a10-b1a0f irq:39 ioport:a000(size=8192) memory:96b00000-9dafffff ioport:c6400000(size=117440512)
*-display
description: VGA compatible controller
product: CoffeeLake-H GT2 [UHD Graphics 630]
vendor: Intel Corporation
physical id: 2
bus info: pci@0000:00:02.0
logical name: /dev/fb0
version: 00
width: 64 bits
clock: 33MHz
capabilities: pciexpress msi pm vga_controller bus_master cap_list rom fb
configuration: depth=32 driver=i915 latency=0 resolution=1920,1080
resources: irq:98 memory:80000000-80ffffff memory:a0000000-afffffff ioport:3000(size=64) memory:c0000-dffff
*-generic UNCLAIMED
description: Signal processing controller
product: Cannon Lake PCH Thermal Controller
vendor: Intel Corporation
physical id: 12
bus info: pci@0000:00:12.0
version: 10
width: 64 bits
clock: 33MHz
capabilities: pm msi cap_list
configuration: latency=0
resources: memory:81616000-81616fff
*-usb
description: USB controller
product: Cannon Lake PCH USB 3.1 xHCI Host Controller
vendor: Intel Corporation
physical id: 14
bus info: pci@0000:00:14.0
version: 10
width: 64 bits
clock: 33MHz
capabilities: pm msi xhci bus_master cap_list
configuration: driver=xhci_hcd latency=0
resources: irq:41 memory:81600000-8160ffff
*-usbhost:0
product: xHCI Host Controller
vendor: Linux 6.12.25 xhci-hcd
physical id: 0
bus info: usb@1
logical name: usb1
version: 6.12
capabilities: usb-2.00
configuration: driver=hub slots=16 speed=480Mbit/s
*-usb
description: Keyboard
product: USB Receiver
vendor: Logitech
physical id: e
bus info: usb@1:e
version: 12.10
capabilities: usb-2.00
configuration: driver=usbhid maxpower=98mA speed=12Mbit/s
*-usbhost:1
product: xHCI Host Controller
vendor: Linux 6.12.25 xhci-hcd
physical id: 1
bus info: usb@2
logical name: usb2
version: 6.12
capabilities: usb-3.10
configuration: driver=hub slots=10 speed=10000Mbit/s
*-memory UNCLAIMED
description: RAM memory
product: Cannon Lake PCH Shared SRAM
vendor: Intel Corporation
physical id: 14.2
bus info: pci@0000:00:14.2
version: 10
width: 64 bits
clock: 33MHz (30.3ns)
capabilities: pm cap_list
configuration: latency=0
resources: memory:81614000-81615fff memory:81617000-81617fff
*-communication:0
description: Communication controller
product: Cannon Lake PCH HECI Controller
vendor: Intel Corporation
physical id: 16
bus info: pci@0000:00:16.0
version: 10
width: 64 bits
clock: 33MHz
capabilities: pm msi bus_master cap_list
configuration: driver=mei_me latency=0
resources: irq:81 memory:81618000-81618fff
*-pci:3
description: PCI bridge
product: Cannon Lake PCH PCI Express Root Port #17
vendor: Intel Corporation
physical id: 1b
bus info: pci@0000:00:1b.0
version: f0
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:29 ioport:b0000000(size=19922944)
*-storage
description: NVMe device
product: APPLE SSD AP0128M
vendor: Apple Inc.
physical id: 0
bus info: pci@0000:02:00.0
logical name: /dev/nvme0
version: 1310
serial: H28146200L0JRN1D3
width: 64 bits
clock: 33MHz
capabilities: storage pm msi pciexpress bus_master cap_list
configuration: driver=nvme latency=0 nqn=nqn.2014.08.org.nvmexpress:106b106bH28146200L0JRN1D3 APPLE SSD AP0128M state=live
resources: irq:40 memory:b0000000-b03fffff memory:b1000000-b107ffff memory:b1200000-b120ffff
*-namespace:0
description: NVMe disk
physical id: 0
logical name: hwmon0
*-namespace:1
description: NVMe disk
physical id: 2
logical name: /dev/ng0n1
*-namespace:2
description: NVMe disk
physical id: 1
bus info: nvme@0:1
logical name: /dev/nvme0n1
size: 113GiB (121GB)
capabilities: partitioned partitioned:dos
configuration: logicalsectorsize=4096 sectorsize=4096 wwid=nvme.106b-4832383134363230304c304a524e314433-4150504c4520535344204150303132384d-00000001
*-volume UNCLAIMED
description: EFI GPT partition
physical id: 1
bus info: nvme@0:1,1
capacity: 14GiB
capabilities: primary nofs
*-generic:0 UNCLAIMED
description: Non-VGA unclassified device
product: T2 Bridge Controller
vendor: Apple Inc.
physical id: 0.1
bus info: pci@0000:02:00.1
version: 01
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress bus_master cap_list
configuration: latency=0
resources: memory:b0400000-b07fffff memory:b1080000-b10fffff memory:b1210000-b121ffff
*-generic:1 UNCLAIMED
description: Non-VGA unclassified device
product: T2 Secure Enclave Processor
vendor: Apple Inc.
physical id: 0.2
bus info: pci@0000:02:00.2
version: 01
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress bus_master cap_list
configuration: latency=0
resources: memory:b0800000-b0bfffff memory:b1100000-b117ffff memory:b1220000-b122ffff
*-multimedia UNCLAIMED
description: Multimedia audio controller
product: Apple Audio Device
vendor: Apple Inc.
physical id: 0.3
bus info: pci@0000:02:00.3
version: 01
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress cap_list
configuration: latency=0
resources: memory:b0c00000-b0ffffff memory:b1180000-b11fffff memory:b1230000-b123ffff
*-pci:4
description: PCI bridge
product: Cannon Lake PCH PCI Express Root Port #1
vendor: Intel Corporation
physical id: 1c
bus info: pci@0000:00:1c.0
version: f0
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:30 memory:81000000-814fffff
*-network UNCLAIMED
description: Network controller
product: BCM4364 802.11ac Wireless Network Adapter
vendor: Broadcom Inc. and subsidiaries
physical id: 0
bus info: pci@0000:03:00.0
version: 03
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress cap_list
configuration: latency=0
resources: memory:81400000-81407fff memory:81000000-813fffff
*-pci:5
description: PCI bridge
product: Cannon Lake PCH PCI Express Root Port #2
vendor: Intel Corporation
physical id: 1c.1
bus info: pci@0000:00:1c.1
version: f0
width: 32 bits
clock: 33MHz
capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
configuration: driver=pcieport
resources: irq:31 ioport:b1300000(size=1048576)
*-network
description: Ethernet interface
product: NetXtreme BCM57766 Gigabit Ethernet PCIe
vendor: Broadcom Inc. and subsidiaries
physical id: 0
bus info: pci@0000:04:00.0
logical name: eth0
version: 01
serial: 28:ec:95:09:d9:f4
size: 1Gbit/s
capacity: 1Gbit/s
width: 64 bits
clock: 33MHz
capabilities: pm vpd msi msix pciexpress bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=tg3 driverversion=6.12.25 duplex=full firmware=v1.15 ip=10.66.66.200 latency=0 link=yes multicast=yes port=twisted pair speed=1Gbit/s
resources: irq:17 memory:b1300000-b130ffff memory:b1310000-b131ffff
*-communication:1 UNCLAIMED
description: Communication controller
product: Cannon Lake PCH Serial IO UART Host Controller
vendor: Intel Corporation
physical id: 1e
bus info: pci@0000:00:1e.0
version: 10
width: 64 bits
clock: 33MHz
capabilities: pm cap_list
configuration: latency=0
resources: iomemory:400-3ff memory:4000100000-4000100fff
*-isa
description: ISA bridge
product: Cannon Lake LPC Controller
vendor: Intel Corporation
physical id: 1f
bus info: pci@0000:00:1f.0
version: 10
width: 32 bits
clock: 33MHz
capabilities: isa
configuration: latency=0
*-pnp00:00
product: PnP device PNP0c02
physical id: 0
capabilities: pnp
configuration: driver=system
*-pnp00:01
product: PnP device PNP0c02
physical id: 1
capabilities: pnp
configuration: driver=system
*-multimedia
description: Audio device
product: Cannon Lake PCH cAVS
vendor: Intel Corporation
physical id: 1f.3
bus info: pci@0000:00:1f.3
logical name: card0
logical name: /dev/snd/controlC0
logical name: /dev/snd/hwC0D2
logical name: /dev/snd/pcmC0D3p
logical name: /dev/snd/pcmC0D7p
logical name: /dev/snd/pcmC0D8p
version: 10
width: 64 bits
clock: 33MHz
capabilities: pm msi bus_master cap_list
configuration: driver=snd_hda_intel latency=64
resources: iomemory:400-3ff irq:99 memory:81610000-81613fff memory:4000000000-40000fffff
*-input:0
product: HDA Intel PCH HDMI/DP,pcm=3
physical id: 0
logical name: input13
logical name: /dev/input/event12
*-input:1
product: HDA Intel PCH HDMI/DP,pcm=7
physical id: 1
logical name: input14
logical name: /dev/input/event13
*-input:2
product: HDA Intel PCH HDMI/DP,pcm=8
physical id: 2
logical name: input15
logical name: /dev/input/event14
*-serial:0
description: SMBus
product: Cannon Lake PCH SMBus Controller
vendor: Intel Corporation
physical id: 1f.4
bus info: pci@0000:00:1f.4
version: 10
width: 64 bits
clock: 33MHz
configuration: driver=i801_smbus latency=0
resources: irq:16 memory:8161a000-8161a0ff ioport:3040(size=32)
*-serial:1 UNCLAIMED
description: Serial bus controller
product: Cannon Lake PCH SPI Controller
vendor: Intel Corporation
physical id: 1f.5
bus info: pci@0000:00:1f.5
version: 10
width: 32 bits
clock: 33MHz
configuration: latency=0
resources: memory:fe010000-fe010fff
*-battery
physical id: 1
*-input:0
product: Power Button
physical id: 2
logical name: input0
logical name: /dev/input/event0
capabilities: platform
*-input:1
product: Sleep Button
physical id: 3
logical name: input1
logical name: /dev/input/event1
capabilities: platform
*-input:2
product: Logitech USB Receiver System Control
physical id: 4
logical name: input10
logical name: /dev/input/event10
capabilities: usb
*-input:3
product: Video Bus
physical id: 5
logical name: input12
logical name: /dev/input/event11
capabilities: platform
*-input:4
product: Power Button
physical id: 6
logical name: input2
logical name: /dev/input/event2
capabilities: platform
*-input:5
product: Logitech USB Receiver
physical id: 7
logical name: input7
logical name: /dev/input/event7
logical name: input7::capslock
logical name: input7::compose
logical name: input7::kana
logical name: input7::numlock
logical name: input7::scrolllock
capabilities: usb
*-input:6
product: Logitech USB Receiver Mouse
physical id: 8
logical name: input8
logical name: /dev/input/event8
capabilities: usb
*-input:7
product: Logitech USB Receiver Consumer Control
physical id: 9
logical name: input9
logical name: /dev/input/event9
capabilities: usb
Rest of the network.log:
=== [4/5] lspci ===
00:00.0 Host bridge: Intel Corporation 8th Gen Core Processor Host Bridge/DRAM Registers (rev 07)
00:01.0 PCI bridge: Intel Corporation 6th-10th Gen Core Processor PCIe Controller (x16) (rev 07)
00:01.1 PCI bridge: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor PCIe Controller (x8) (rev 07)
00:01.2 PCI bridge: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor PCIe Controller (x4) (rev 07)
00:02.0 VGA compatible controller: Intel Corporation CoffeeLake-H GT2 [UHD Graphics 630]
00:12.0 Signal processing controller: Intel Corporation Cannon Lake PCH Thermal Controller (rev 10)
00:14.0 USB controller: Intel Corporation Cannon Lake PCH USB 3.1 xHCI Host Controller (rev 10)
00:14.2 RAM memory: Intel Corporation Cannon Lake PCH Shared SRAM (rev 10)
00:16.0 Communication controller: Intel Corporation Cannon Lake PCH HECI Controller (rev 10)
00:1b.0 PCI bridge: Intel Corporation Cannon Lake PCH PCI Express Root Port #17 (rev f0)
00:1c.0 PCI bridge: Intel Corporation Cannon Lake PCH PCI Express Root Port #1 (rev f0)
00:1c.1 PCI bridge: Intel Corporation Cannon Lake PCH PCI Express Root Port #2 (rev f0)
00:1e.0 Communication controller: Intel Corporation Cannon Lake PCH Serial IO UART Host Controller (rev 10)
00:1f.0 ISA bridge: Intel Corporation Cannon Lake LPC Controller (rev 10)
00:1f.3 Audio device: Intel Corporation Cannon Lake PCH cAVS (rev 10)
00:1f.4 SMBus: Intel Corporation Cannon Lake PCH SMBus Controller (rev 10)
00:1f.5 Serial bus controller: Intel Corporation Cannon Lake PCH SPI Controller (rev 10)
02:00.0 Mass storage controller: Apple Inc. ANS2 NVMe Controller (rev 01)
02:00.1 Non-VGA unclassified device: Apple Inc. T2 Bridge Controller (rev 01)
02:00.2 Non-VGA unclassified device: Apple Inc. T2 Secure Enclave Processor (rev 01)
02:00.3 Multimedia audio controller: Apple Inc. Apple Audio Device (rev 01)
03:00.0 Network controller: Broadcom Inc. and subsidiaries BCM4364 802.11ac Wireless Network Adapter (rev 03)
04:00.0 Ethernet controller: Broadcom Inc. and subsidiaries NetXtreme BCM57766 Gigabit Ethernet PCIe (rev 01)
05:00.0 PCI bridge: Intel Corporation DSL6540 Thunderbolt 3 Bridge [Alpine Ridge 4C 2015] (rev 06)
06:00.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06)
06:01.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06)
06:02.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06)
06:04.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06)
07:00.0 System peripheral: Intel Corporation JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018] (rev 06)
08:00.0 USB controller: Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018] (rev 06)
7b:00.0 PCI bridge: Intel Corporation DSL6540 Thunderbolt 3 Bridge [Alpine Ridge 4C 2015] (rev 06)
7c:00.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06)
7c:01.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06)
7c:02.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06)
7c:04.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06)
7d:00.0 System peripheral: Intel Corporation JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018] (rev 06)
7e:00.0 USB controller: Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018] (rev 06)
=== [5/5] lsusb ===
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 003: ID 046d:c52b Logitech, Inc. Unifying Receiver
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 004 Device 002: ID 0b05:1932 ASUSTek Computer, Inc. ROG STRIX Arion
Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Hi, based on the command output:
- The network card detected is: Broadcom Inc. and subsidiaries NetXtreme BCM57766 Gigabit Ethernet PCIe. It only supports 10/100/1000 Mbps (10M/100M/1G) in full-duplex mode.
- According to the lshw result, both the negotiated speed and the theoretical maximum speed of this NIC are 1Gbps (1G:1G).
- You can perform a 10GbE speed test as follows:
Within your local network, set up a 10G environment by connecting the Zima device directly to a Windows/Mac computer using a 10GbE network cable. Make sure both ends have 10 Gigabit Ethernet ports. Then, upload a large file via the Files app in ZimaOS and check whether the transfer speed can reach the expected 10Gbps level.
