In Casa OS I have the Zima board with the PCIE M.2 Drives It has two slots one for NGFF and the other one NVME I got those populated and I also got two SATA SSD’s it shows all the drives except for the NGFF SSD how can I get those four drives working?

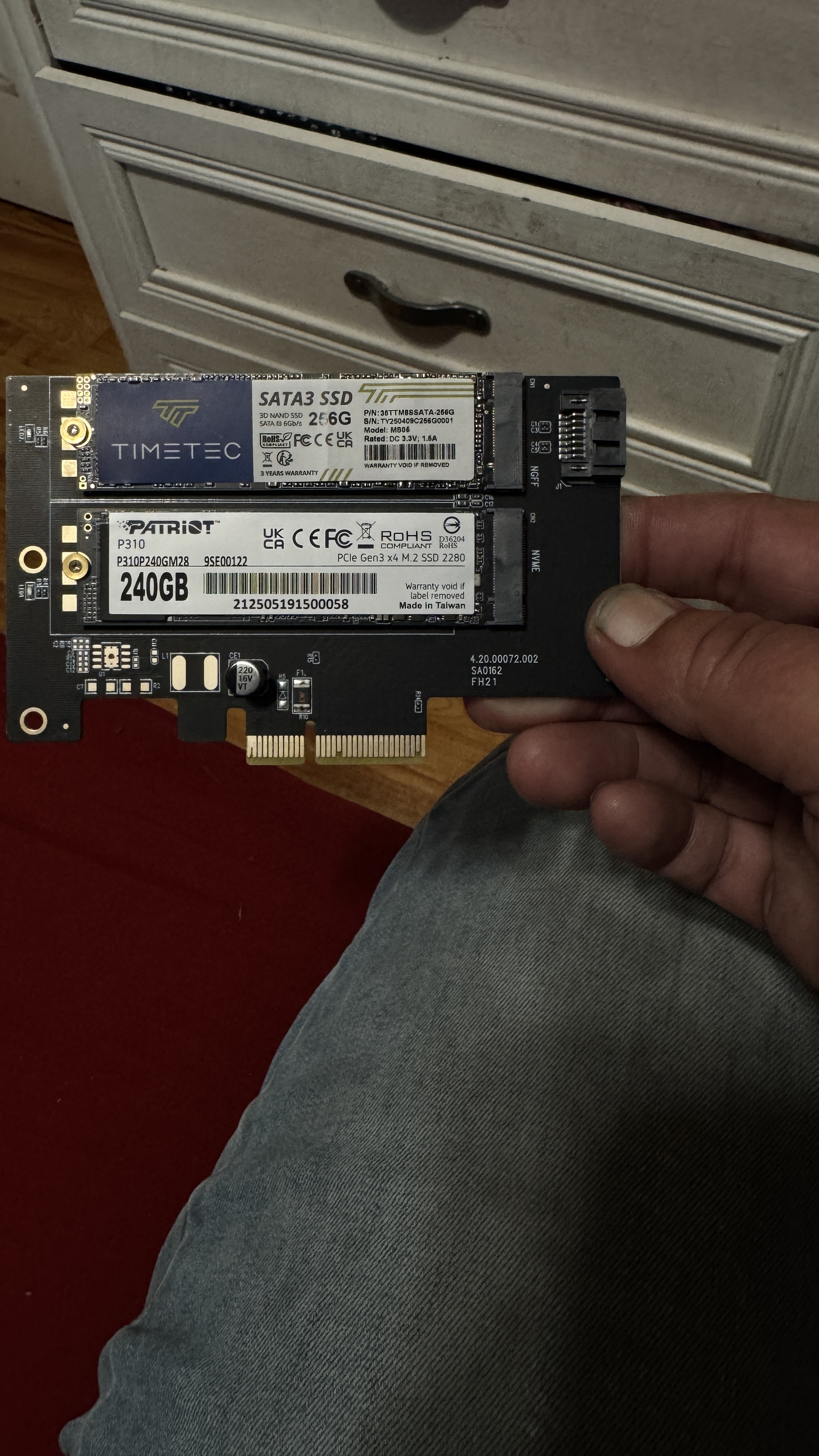

It will be helpful if you provide the photos of your drives and the PCIe accessory.
How do I post photo?
It seems that you need an external SATA cable connected?

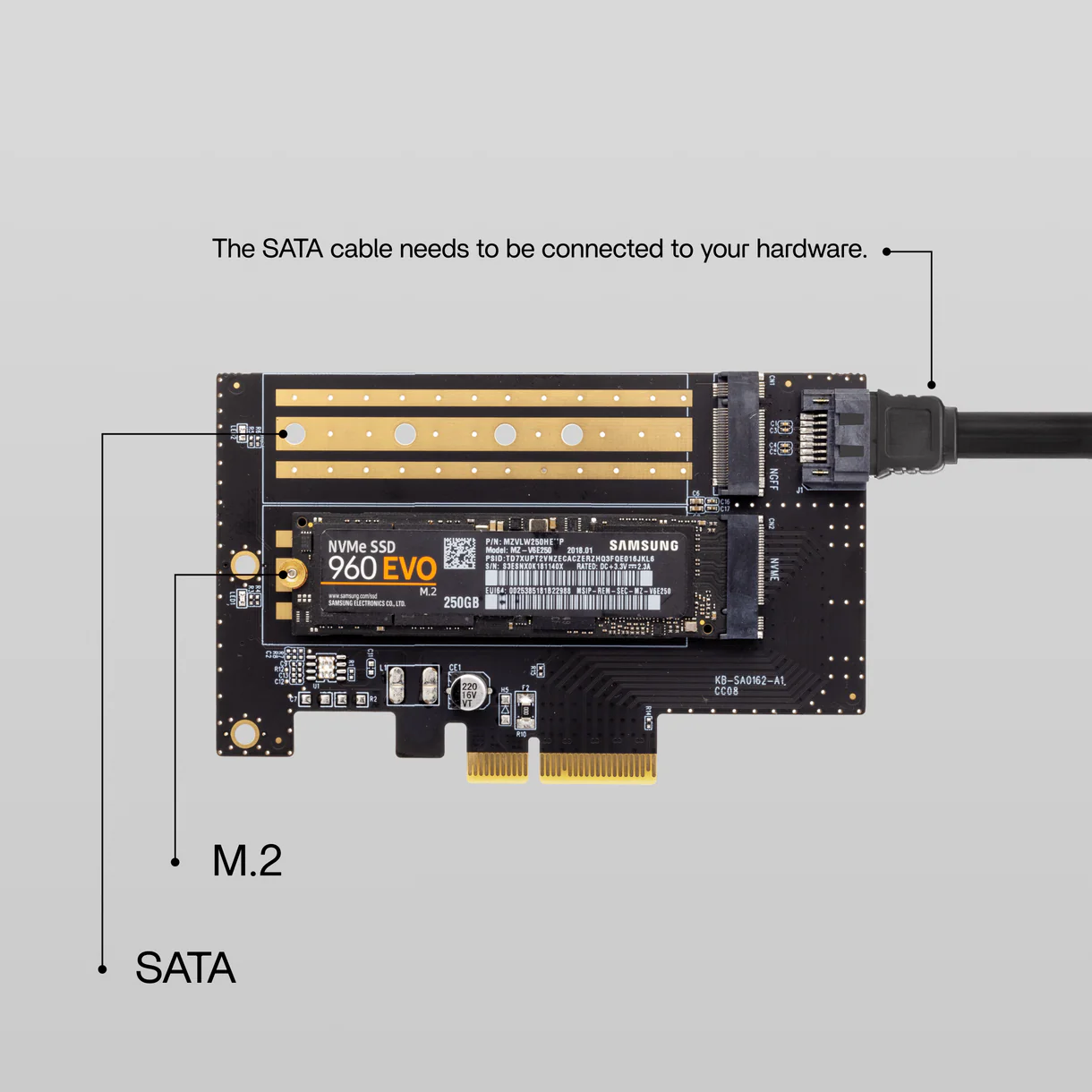

I check the shop page:
Look forward to your reply.
I have the sata cables connected to 2 SSD drives I am trying to get 4 Drives running on it what do I connect the sata cable to what?
We’re sorry that the current product doesn’t meet your initial thoughts. However, according to the product description, this expansion board does require a SATA cable to work with an NGFF drive. Currently, your accessory only supports two SATA drives.
If you want to support more SATA drives, maybe this accessory is worth a look. Or, do you have a SATA splitter cable in your country?
You can also join our DC server to see if others have solutions.
