Does anybody do one to one help with setting up Zima OS?

MrPenguin · January 11, 2026, 7:06am

Communication with the API failed, is NPM running correctly

This is the latest when checking ngin proxy manager. Once this is fixed, this will be the last time I touch it.

gelbuilding · January 11, 2026, 7:29am

This is now 2 separate problems:

1) 502 Bad Gateway

Means NPM cannot reach Jellyfin (wrong IP/port or Jellyfin restarted and got a new Docker IP).

Fix: stop using the IP and use the container name in NPM:

Forward Hostname: jellyfin
Forward Port: 8096
Scheme: http

(or re-check Jellyfin IP again if you insist on IPs, they can change after restarts)

2) “Communication with the API failed”

That means NPM container is not healthy / database not responding.

Do this via SSH:

docker ps | grep nginxproxymanager
docker logs --tail 200 nginxproxymanager
docker restart nginxproxymanager

If it still fails, restart the database container too (if you’re using one), or reboot the host.

Important rule: don’t edit NPM during outages.
Most issues after power/internet events are just containers restarting in a different order and IPs changing.

Once NPM loads normally and is forwarding jellyfin:8096, everything comes back instantly.

MrPenguin · January 11, 2026, 7:57am

Still nothing for local or benshoff

gelbuilding · January 11, 2026, 8:17am

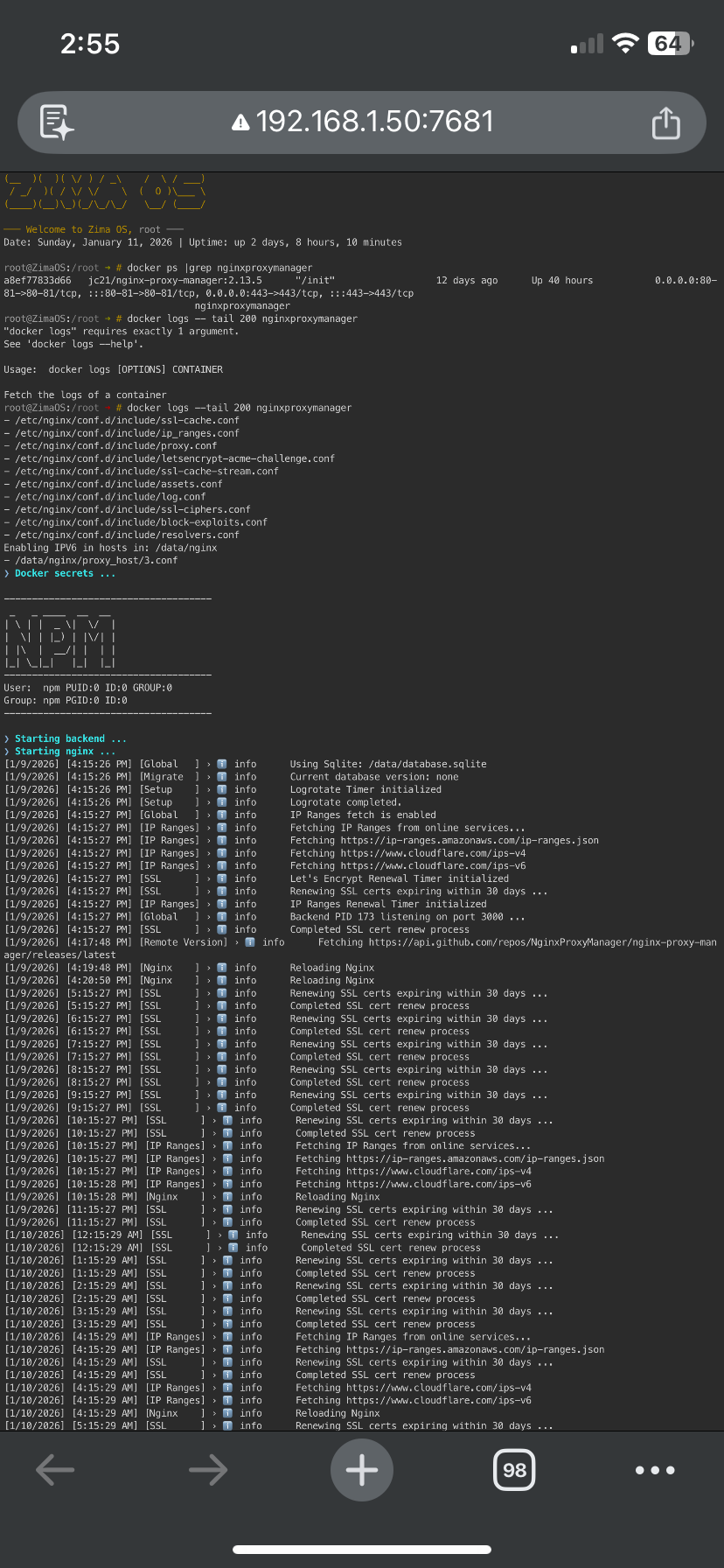

Based on those screenshots/logs:

Nginx Proxy Manager IS running fine.
The logs show Let’s Encrypt renewal + re-issue worked (success).
So the “API failed” message is not because NPM is dead, it’s usually because the NPM web UI can’t talk to its backend for a moment (after changes/restart), or the browser cached a stale session.

Now the real issue is still just this:

502 Bad Gateway = NPM can’t reach Jellyfin

Most common reason (especially after outages/restarts):

Jellyfin’s Docker IP changed (if you used 172.17.x.x in Forward Host)

Fix (do this only)

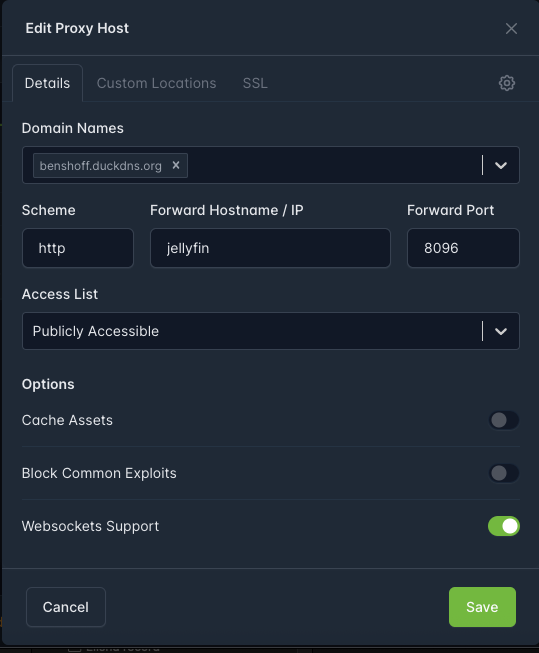

In NPM Proxy Host set:

Forward Hostname/IP: jellyfin (not 172.17.x.x)
Forward Port: 8096
Scheme: http

Save.

Then restart both:

docker restart jellyfin
docker restart nginxproxymanager

Test:

https://benshoff.duckdns.org

One rule to stop this happening again

Never use 172.17.x.x IPs in NPM, they can change after restarts.
Use the container name jellyfin so it stays stable.

That’s it.

MrPenguin · January 11, 2026, 7:07pm

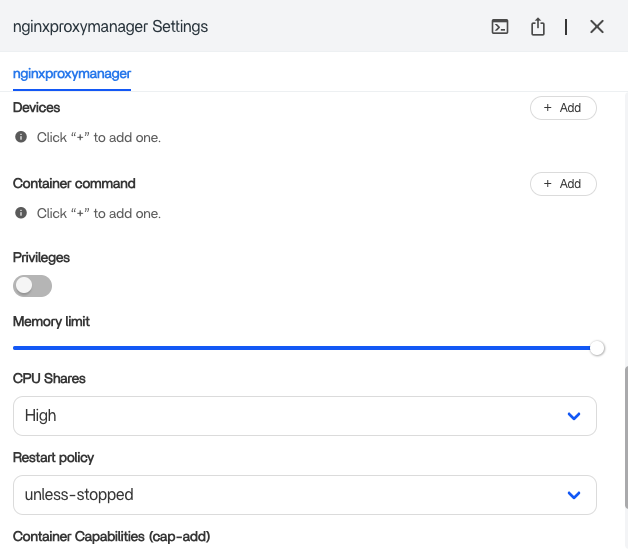

Tried what you said, and still wont load. For being thorough I am going to upload the latest report, and screenshots to you. If you ever want to setup a discord session or live session, I am game for it.

root@ZimaOS:/root ➜ a8ef77833d66 jc21/nginx-pro root@ZimaOS:/root ➜ [1/11/2026] [7:53:36 AM] [SSL [1/11/2026] [7:53:36 AM] [SSL [1/11/2026] [7:53:36 [1/11/2026] [7:53:36 AM] [Global [1/11/2026] [7:53:36 AM] [SSL [1/11/2026] [8:53:36 AM] [SSL [1/11/2026] [8:53:36 AM] [SSL [1/11/2026] [9:53:36 AM] [SSL [1/11/2026] [9:53:36 AM] [SSL [1/11/2026] [10:53:36 AM] [SSL [1/11/2026] [10:53:36 AM] [SSL [1/11/2026] [11:53:36 AM] [SSL [1/11/2026] [11:53:36 AM] [SSL [1/11/2026] [12:53:36 PM] [SSL [1/11/2026] [12:53:36 PM] [SSL [1/11/2026] [1:53:36 PM] [SSL [1/11/2026] [1:53:36 PM] [SSL [1/11/2026] [1:53:36 [1/11/2026] [1:53:36 [1/11/2026] [1:53:36 [1/11/2026] [1:53:37 [1/11/2026] [1:53:37 PM] [Nginx [1/11/2026] [2:53:36 PM] [SSL [1/11/2026] [2:53:36 PM] [SSL [1/11/2026] [3:53:36 PM] [SSL [1/11/2026] [3:53:36 PM] [SSL [1/11/2026] [4:53:36 PM] [SSL [1/11/2026] [4:53:36 PM] [SSL [1/11/2026] [5:53:36 PM] [SSL [1/11/2026] [5:53:36 PM] [SSL [1/11/2026] [6:53:36 PM] [SSL [1/11/2026] [6:53:36 PM] [SSL [1/11/2026] [6:55:25 PM] [Global [1/11/2026] [6:55:25 PM] [Global ❯ Configuring npm user …
0
usermod: no changes
❯ Configuring npm group …
❯ Checking paths …
❯ Setting ownership … # docker ps | grep nginxproxymanager
xy-manager:2.13.5 “/init” 12 days ago Up 4 minutes 0.0.0.0:80-81->80-81/tcp, :::80-81->80-81/tcp, 0.0.0.0:443->443/tcp, :::443->443/tcp nginxproxymanager
# docker logs --tail 200 nginxproxymanager
] › info Let’s Encrypt Renewal Timer initialized
] › info Renewing SSL certs expiring within 30 days …
AM] [IP Ranges] › info IP Ranges Renewal Timer initialized
] › info Backend PID 175 listening on port 3000 …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
PM] [IP Ranges] › info Fetching IP Ranges from online services…
PM] [IP Ranges] › info Fetching https://ip-ranges.amazonaws.com/ip-ranges.json
PM] [IP Ranges] › info Fetching https://www.cloudflare.com/ips-v4
PM] [IP Ranges] › info Fetching https://www.cloudflare.com/ips-v6
] › info Reloading Nginx
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info Renewing SSL certs expiring within 30 days …
] › info Completed SSL cert renew process
] › info PID 175 received SIGTERM
] › info Stopping.

/data …
SKIPPED
/etc/letsencrypt …
SKIPPED
/run/nginx …
SKIPPED
/tmp/nginx …
SKIPPED
/var/cache/nginx …
SKIPPED
/var/lib/logrotate …
SKIPPED
/var/lib/nginx …
SKIPPED
/var/log/nginx …
SKIPPED
/etc/nginx/nginx …
SKIPPED
/etc/nginx/nginx.conf …
SKIPPED
/etc/nginx/conf.d …
SKIPPED
❯ Changing ownership of certbot directories, this may take some time …
/opt/certbot …
SKIPPED
/opt/certbot/bin …
SKIPPED
/opt/certbot/lib/python3.11/site-packages …
SKIPPED
❯ Dynamic resolvers …
❯ IPv6 …
Enabling IPV6 in hosts in: /etc/nginx/conf.d
/etc/nginx/conf.d/default.conf
/etc/nginx/conf.d/production.conf
/etc/nginx/conf.d/include/force-ssl.conf
/etc/nginx/conf.d/include/ssl-cache.conf
/etc/nginx/conf.d/include/ip_ranges.conf
/etc/nginx/conf.d/include/proxy.conf
/etc/nginx/conf.d/include/letsencrypt-acme-challenge.conf
/etc/nginx/conf.d/include/ssl-cache-stream.conf
/etc/nginx/conf.d/include/assets.conf
/etc/nginx/conf.d/include/log.conf
/etc/nginx/conf.d/include/ssl-ciphers.conf
/etc/nginx/conf.d/include/block-exploits.conf
/etc/nginx/conf.d/include/resolvers.conf
Enabling IPV6 in hosts in: /data/nginx
/data/nginx/proxy_host/3.conf
❯ Docker secrets …

| \ | | _ | / |
| | | |) | |/| |
| |\ | __/| | | |
|| _|| || |_|

User: npm PUID:0 ID:0 GROUP:0
Group: npm PGID:0 ID:0

❯ Starting nginx …
❯ Starting backend …
[1/11/2026] [6:55:32 PM] [Global ] › info Using Sqlite: /data/database.sqlite
[1/11/2026] [6:55:33 PM] [Migrate ] › info Current database version: none
[1/11/2026] [6:55:33 PM] [Setup ] › info Logrotate Timer initialized
[1/11/2026] [6:55:33 PM] [Setup ] › info Logrotate completed.
[1/11/2026] [6:55:33 PM] [Global ] › info IP Ranges fetch is enabled
[1/11/2026] [6:55:33 PM] [IP Ranges] › info Fetching IP Ranges from online services…
[1/11/2026] [6:55:33 PM] [IP Ranges] › info Fetching https://ip-ranges.amazonaws.com/ip-ranges.json
[1/11/2026] [6:55:34 PM] [IP Ranges] › info Fetching https://www.cloudflare.com/ips-v4
[1/11/2026] [6:55:34 PM] [IP Ranges] › info Fetching https://www.cloudflare.com/ips-v6
[1/11/2026] [6:55:34 PM] [SSL ] › info Let’s Encrypt Renewal Timer initialized
[1/11/2026] [6:55:34 PM] [SSL ] › info Renewing SSL certs expiring within 30 days …
[1/11/2026] [6:55:34 PM] [IP Ranges] › info IP Ranges Renewal Timer initialized
[1/11/2026] [6:55:34 PM] [Global ] › info Backend PID 170 listening on port 3000 …
[1/11/2026] [6:55:34 PM] [SSL ] › info Completed SSL cert renew process
[1/11/2026] [6:57:24 PM] [Global ] › info PID 170 received SIGTERM
[1/11/2026] [6:57:24 PM] [Global ] › info Stopping.
❯ Configuring npm user …
0
usermod: no changes
❯ Configuring npm group …
❯ Checking paths …
❯ Setting ownership …

/data …
SKIPPED
/etc/letsencrypt …
SKIPPED
/run/nginx …
SKIPPED
/tmp/nginx …
SKIPPED
/var/cache/nginx …
SKIPPED
/var/lib/logrotate …
SKIPPED
/var/lib/nginx …
SKIPPED
/var/log/nginx …
SKIPPED
/etc/nginx/nginx …
SKIPPED
/etc/nginx/nginx.conf …
SKIPPED
/etc/nginx/conf.d …
SKIPPED
❯ Changing ownership of certbot directories, this may take some time …
/opt/certbot …
SKIPPED
/opt/certbot/bin …
SKIPPED
/opt/certbot/lib/python3.11/site-packages …
SKIPPED
❯ Dynamic resolvers …
❯ IPv6 …
Enabling IPV6 in hosts in: /etc/nginx/conf.d
/etc/nginx/conf.d/default.conf
/etc/nginx/conf.d/production.conf
/etc/nginx/conf.d/include/force-ssl.conf
/etc/nginx/conf.d/include/ssl-cache.conf
/etc/nginx/conf.d/include/ip_ranges.conf
/etc/nginx/conf.d/include/proxy.conf
/etc/nginx/conf.d/include/letsencrypt-acme-challenge.conf
/etc/nginx/conf.d/include/ssl-cache-stream.conf
/etc/nginx/conf.d/include/assets.conf
/etc/nginx/conf.d/include/log.conf
/etc/nginx/conf.d/include/ssl-ciphers.conf
/etc/nginx/conf.d/include/block-exploits.conf
/etc/nginx/conf.d/include/resolvers.conf
Enabling IPV6 in hosts in: /data/nginx
/data/nginx/proxy_host/3.conf
❯ Docker secrets …

| \ | | _ | / |
| | | |) | |/| |
| |\ | __/| | | |
|| _|| || |_|

User: npm PUID:0 ID:0 GROUP:0
Group: npm PGID:0 ID:0

❯ Starting nginx …
❯ Starting backend …
[1/11/2026] [6:57:51 PM] [Global ] › info Using Sqlite: /data/database.sqlite
[1/11/2026] [6:57:53 PM] [Migrate ] › info Current database version: none
[1/11/2026] [6:57:53 PM] [Setup ] › info Logrotate Timer initialized
[1/11/2026] [6:57:53 PM] [Setup ] › info Logrotate completed.
[1/11/2026] [6:57:54 PM] [Global ] › info IP Ranges fetch is enabled
[1/11/2026] [6:57:54 PM] [IP Ranges] › info Fetching IP Ranges from online services…
[1/11/2026] [6:57:54 PM] [IP Ranges] › info Fetching https://ip-ranges.amazonaws.com/ip-ranges.json
[1/11/2026] [6:57:54 PM] [IP Ranges] › info Fetching https://www.cloudflare.com/ips-v4
[1/11/2026] [6:57:54 PM] [IP Ranges] › info Fetching https://www.cloudflare.com/ips-v6
[1/11/2026] [6:57:54 PM] [SSL ] › info Let’s Encrypt Renewal Timer initialized
[1/11/2026] [6:57:54 PM] [SSL ] › info Renewing SSL certs expiring within 30 days …
[1/11/2026] [6:57:54 PM] [IP Ranges] › info IP Ranges Renewal Timer initialized
[1/11/2026] [6:57:54 PM] [Global ] › info Backend PID 174 listening on port 3000 …
[1/11/2026] [6:57:54 PM] [SSL ] › info Completed SSL cert renew process
root@ZimaOS:/root ➜ # docker restart nginxproxymanager

gelbuilding · January 12, 2026, 1:06am

Yep, I see the problem instantly.

502 is happening because NPM is forwarding to the WRONG place

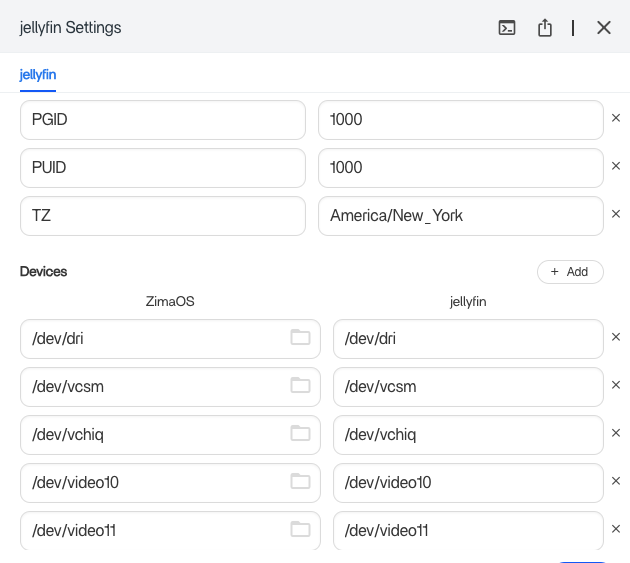

In your Jellyfin container settings, 8096 is not exposed on the host.

You have:

Host 8097 > Container 8096

So the correct local Jellyfin address is:

http://192.168.1.50:8097

But your NPM proxy host is still forwarding to 8096, so it fails > 502 Bad Gateway.

Fix (simple)

In Nginx Proxy Manager > Proxy Host set:

Forward Host / IP:

192.168.1.50

Forward Port:

Scheme:

http

Save > test:

https://benshoff.duckdns.org

Why container name “jellyfin” may not work here

Because NPM + Jellyfin are both on bridge and Zima sometimes breaks container DNS. So use host IP + host port = most reliable.

MrPenguin · January 12, 2026, 4:01am

You have me confused. Now your telling me put in the ip address into ngimx and before you told me not to. I tried it both ways and still 502 bad gateway. No ssl error which is a plus. Also I can get to Jellyfin again locally. So still the battle goes on.

gelbuilding · January 12, 2026, 5:05am

You’re right to call that out, I’ll make it crystal clear:

There are TWO different “IPs” people talk about

That’s what caused the confusion.

OK to use in Nginx Proxy Manager

Local LAN IP (your ZimaOS box):

192.168.1.50

Never use in Nginx Proxy Manager

Public WAN IP (your ISP IP):

174.xx.xx.xx

So yes, using 192.168.1.50 inside NPM is 100% fine.
Using the WAN IP is what breaks everything.

Why you STILL get 502

Because NPM is still not pointing at the correct Jellyfin port.

Your Jellyfin ports show:

Host 8097 > Container 8096

So from NPM, you MUST forward to:

192.168.1.50 : 8097

Not 8096.

Do this EXACTLY (no guessing)

In NPM Proxy Host (benshoff.duckdns.org):

Scheme: http
Forward Host/IP: 192.168.1.50
Forward Port: 8097
Websockets: ON

Save.

Then restart both:

docker restart jellyfin
docker restart nginxproxymanager

Test:

http://benshoff.duckdns.org

(SSL can come after it works)

If it still shows 502 after this

Then the proxy host is not saving correctly, and we verify it in 1 command:

Run:

docker exec -it nginxproxymanager curl -I http://192.168.1.50:8097

If this returns HTTP 200/302 > NPM can reach Jellyfin and the config is wrong in UI
If it fails > networking issue

One-line summary

Use 192.168.1.50:8097 in NPM.
Never touch the WAN IP.

MrPenguin · January 12, 2026, 5:21am

gelbuilding · January 12, 2026, 10:37am

I totally understand why this feels confusing, because it looks like we keep telling you different settings. The truth is: there are 3 different “addresses” in this setup, and mixing them is what keeps breaking things.

The 3 addresses (this is the key)

1) Public WAN IP (changes after outages)
Example: 174.xx.xx.xx
You never put this into NPM. DuckDNS handles it automatically.

2) ZimaOS LAN IP (always local)
Example: 192.168.1.50
This is fine to use locally, but it’s not the best long-term target for NPM.

3) Docker internal IP (can change)
Example: 172.17.0.3
This can change when containers restart, which causes 502 if you rely on it.

Why you’re getting 502

Your own test proves NPM can’t reach Jellyfin:

docker exec -it nginxproxymanager curl -I http://192.168.1.50:8097
Recv failure: Connection reset by peer

So the issue is not SSL, and not DuckDNS.
It’s that NPM and Jellyfin are not communicating correctly on the Docker network.

The stable fix (so you don’t have to keep touching settings)

Instead of chasing IPs/ports, we make Docker networking stable:

Run this via SSH:

docker network create npm_net
docker network connect npm_net nginxproxymanager
docker network connect npm_net jellyfin
docker restart nginxproxymanager
docker restart jellyfin

Then in NPM Proxy Host, set:

Forward Hostname / IP: jellyfin
Forward Port: 8096
Scheme: http

Save.

Why this solves it permanently

This removes the moving parts:

No more changing IPs
No more bridge weirdness after outages
No more 502 every time something restarts

After this, you should finally be able to “set it and forget it”.

MrPenguin · January 13, 2026, 3:20am

Yes. That worked! Finally it is working after all this struggle again. Even though I got a pounding headache again, I am gonna back up those files.
Thank you so much for your help.

MrPenguin · January 16, 2026, 3:43am

I am back again, and if I am back in this thread, then that means something is not working again. Jellyfin. I sent my link to a friend to find out if it was indeed working properly. benshoff.duckdns.org, and she was able to log in and such. View the contents, just couldnt play. Fine. So I put in another thread about that, and got some advice. I completed what was done. I changed the docker container to change the location of the media, as instructed. Ever since then, it has failed to come back to my domain. Docker restart jellyfin, and nginx. Nothing. I didnt change one network item. It just appears to me like it is just hanging on by a thread, and any little change, and it falls off the cliff. How can I rely on this, when I will need it starting in a few months, when I will be going out of town. Again, I can include whatever info you want. There is a lot I WANT to do, and I believe is possible. Such as play my music through alexa. Pihole, which works successfully, thank goodness, plex, which as far as I know is working properly. I’d like to enjoy the time and effort I put into this box, but so far it’s like playing with an old carbuerator, just gotta keep fiddling with the timing and adjustments till its right. I just at a loss right now. Oh, and I would test the jellyfin settings I changed for the location, if I could get to it. But it just wont open.

gelbuilding · January 16, 2026, 4:13am

Understood, and you’re right to be concerned.

But based on what you wrote, this is not DuckDNS or networking again. It was working, then you changed Jellyfin (media path / container settings), and after that Jellyfin stopped responding, so NPM has nothing to forward to > you end up with your domain not loading.

So the priority is simple:

1) Confirm Jellyfin is running and reachable locally first

If Jellyfin doesn’t work locally, the domain will never work.

Run these via SSH:

docker ps | grep jellyfin
docker logs --tail 100 jellyfin

Then test Jellyfin directly (local):

http://192.168.1.50:8097

If that does not load, Jellyfin is broken and we fix Jellyfin first.

2) The most common cause

When people “change the media location”, they usually do one of these:

map the wrong folder
typo the path
remove a required mount
change permissions

Jellyfin then boots but can’t access media or config properly > it hangs / crashes.

3) Very important (so this stops happening)

Please don’t keep changing multiple settings at once. One small typo is enough to break Docker configs, and it’s extremely common (I’ve done it myself).

We fix this the proper way:
Jellyfin must work locally
then NPM forwards to it
then DuckDNS is just the name on top

Post the output of the 2 commands above and we’ll tell you exactly what broke.

MrPenguin · January 16, 2026, 4:21am

ZimaOS login: root
Password:

(__ )( )( / ) / \ / \ / )
/ / )( / / / \ ( O )_**
()(__)_)(/_/_/ _/ (___/

─── Welcome to Zima OS, root ───
Date: Thursday, January 15, 2026 | Uptime: up 1 day, 9 hours, 12 minutes

root@ZimaOS:/root ➜ # docker ps | grep jellyfin
24bdfd8078c0 linuxserver/jellyfin:10.10.7 “/init” 2 hours ago Up 2 hours 0.0.0.0:7359->7359/tcp, :::7359->7359/tcp, 0.0.0.0:8097->8096/tcp, [::]:8097->8096/tcp, 0.0.0.0:8921->8920/tcp, [::]:8921->8920/tcp jellyfin
root@ZimaOS:/root ➜ # docker logs --tail 100 jellyfin
[mov,mp4,m4a,3gp,3g2,mj2 @ 0x55a2cf7e8480] Duplicated SDTP atom
[22:18:23] [INF] [39] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Alto Knights 2025.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:31] [INF] [25] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Day the Earth Blew Up 2025.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:31] [INF] [31] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Monkey.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:36] [INF] [39] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Control Freak 2025.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:39] [INF] [6] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Presence.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:42] [INF] [39] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/War of the Worlds 2025 Ice Cube.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:47] [INF] [26] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/A Christmas Story Christmas.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:47] [INF] [26] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Free Fall.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:51] [INF] [39] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/How to Train Your Dragon.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:54] [INF] [39] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/I Am Legend.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:18:59] [INF] [39] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Love and Penguins.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:01] [INF] [21] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Love Mercy.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:05] [INF] [26] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/M3GAN 2 0.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:06] [INF] [25] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/M3GAN.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:07] [ERR] [39] MediaBrowser.Providers.Manager.ProviderManager: IOException saving to /config/data/metadata/People/A/Allison Williams/folder.jpg. Will retry saving to /config/data/metadata/library/d4/d4a6fd1338363e4006825e75e0b6db40/folder.jpg
System.IO.IOException: The process cannot access the file ‘/config/data/metadata/People/A/Allison Williams/folder.jpg’ because it is being used by another process.
at Microsoft.Win32.SafeHandles.SafeFileHandle.Init(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Int64& fileLength, UnixFileMode& filePermissions)
at Microsoft.Win32.SafeHandles.SafeFileHandle.Open(String fullPath, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, UnixFileMode openPermissions, Int64& fileLength, UnixFileMode& filePermissions, Boolean failForSymlink, Boolean& wasSymlink, Func4 createOpenException) at System.IO.Strategies.OSFileStreamStrategy..ctor(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Nullable1 unixCreateMode)
at System.IO.FileStream..ctor(String path, FileStreamOptions options)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, CancellationToken cancellationToken)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, String retryPath, CancellationToken cancellationToken)
[22:19:07] [ERR] [6] MediaBrowser.Providers.Manager.ProviderManager: IOException saving to /config/data/metadata/People/V/Violet McGraw/folder.jpg. Will retry saving to /config/data/metadata/library/e0/e0d9b9ea593e93cb788893b59dad4507/folder.jpg
System.IO.IOException: The process cannot access the file ‘/config/data/metadata/People/V/Violet McGraw/folder.jpg’ because it is being used by another process.
at Microsoft.Win32.SafeHandles.SafeFileHandle.Init(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Int64& fileLength, UnixFileMode& filePermissions)
at Microsoft.Win32.SafeHandles.SafeFileHandle.Open(String fullPath, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, UnixFileMode openPermissions, Int64& fileLength, UnixFileMode& filePermissions, Boolean failForSymlink, Boolean& wasSymlink, Func4 createOpenException) at System.IO.Strategies.OSFileStreamStrategy..ctor(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Nullable1 unixCreateMode)
at System.IO.FileStream..ctor(String path, FileStreamOptions options)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, CancellationToken cancellationToken)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, String retryPath, CancellationToken cancellationToken)
[22:19:07] [ERR] [39] MediaBrowser.Providers.Manager.ProviderManager: IOException saving to /config/data/metadata/People/A/Amie Donald/folder.jpg. Will retry saving to /config/data/metadata/library/b1/b174ccc0c6fb01b7f3b7e7b2ab870dd3/folder.jpg
System.IO.IOException: The process cannot access the file ‘/config/data/metadata/People/A/Amie Donald/folder.jpg’ because it is being used by another process.
at Microsoft.Win32.SafeHandles.SafeFileHandle.Init(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Int64& fileLength, UnixFileMode& filePermissions)
at Microsoft.Win32.SafeHandles.SafeFileHandle.Open(String fullPath, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, UnixFileMode openPermissions, Int64& fileLength, UnixFileMode& filePermissions, Boolean failForSymlink, Boolean& wasSymlink, Func4 createOpenException) at System.IO.Strategies.OSFileStreamStrategy..ctor(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Nullable1 unixCreateMode)
at System.IO.FileStream..ctor(String path, FileStreamOptions options)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, CancellationToken cancellationToken)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, String retryPath, CancellationToken cancellationToken)
[22:19:08] [ERR] [22] MediaBrowser.Providers.Manager.ProviderManager: IOException saving to /config/data/metadata/People/J/Jenna Davis/folder.jpg. Will retry saving to /config/data/metadata/library/b1/b1b342c0c8fd08a3c0ce8e12789ddd16/folder.jpg
System.IO.IOException: The process cannot access the file ‘/config/data/metadata/People/J/Jenna Davis/folder.jpg’ because it is being used by another process.
at Microsoft.Win32.SafeHandles.SafeFileHandle.Init(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Int64& fileLength, UnixFileMode& filePermissions)
at Microsoft.Win32.SafeHandles.SafeFileHandle.Open(String fullPath, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, UnixFileMode openPermissions, Int64& fileLength, UnixFileMode& filePermissions, Boolean failForSymlink, Boolean& wasSymlink, Func4 createOpenException) at System.IO.Strategies.OSFileStreamStrategy..ctor(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Nullable1 unixCreateMode)
at System.IO.FileStream..ctor(String path, FileStreamOptions options)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, CancellationToken cancellationToken)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, String retryPath, CancellationToken cancellationToken)
[22:19:08] [ERR] [21] MediaBrowser.Providers.Manager.ProviderManager: IOException saving to /config/data/metadata/People/B/Brian Jordan Alvarez/folder.jpg. Will retry saving to /config/data/metadata/library/e1/e198a01fa2945bee66dc005ca3704af1/folder.jpg
System.IO.IOException: The process cannot access the file ‘/config/data/metadata/People/B/Brian Jordan Alvarez/folder.jpg’ because it is being used by another process.
at Microsoft.Win32.SafeHandles.SafeFileHandle.Init(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Int64& fileLength, UnixFileMode& filePermissions)
at Microsoft.Win32.SafeHandles.SafeFileHandle.Open(String fullPath, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, UnixFileMode openPermissions, Int64& fileLength, UnixFileMode& filePermissions, Boolean failForSymlink, Boolean& wasSymlink, Func4 createOpenException) at System.IO.Strategies.OSFileStreamStrategy..ctor(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Nullable1 unixCreateMode)
at System.IO.FileStream..ctor(String path, FileStreamOptions options)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, CancellationToken cancellationToken)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, String retryPath, CancellationToken cancellationToken)
[22:19:08] [ERR] [6] Emby.Server.Implementations.Library.LibraryManager: Cannot compute blurhash for /config/data/metadata/People/J/Jen Van Epps/folder.jpg
System.IO.IOException: The process cannot access the file ‘/config/data/metadata/People/J/Jen Van Epps/folder.jpg’ because it is being used by another process.
at Microsoft.Win32.SafeHandles.SafeFileHandle.Init(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Int64& fileLength, UnixFileMode& filePermissions)
at Microsoft.Win32.SafeHandles.SafeFileHandle.Open(String fullPath, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, UnixFileMode openPermissions, Int64& fileLength, UnixFileMode& filePermissions, Boolean failForSymlink, Boolean& wasSymlink, Func4 createOpenException) at System.IO.Strategies.OSFileStreamStrategy..ctor(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Nullable1 unixCreateMode)
at Jellyfin.Drawing.Skia.SkiaEncoder.GetImageBlurHash(Int32 xComp, Int32 yComp, String path)
at Emby.Server.Implementations.Library.LibraryManager.UpdateImagesAsync(BaseItem item, Boolean forceUpdate)
[22:19:11] [ERR] [28] MediaBrowser.Providers.Manager.ProviderManager: IOException saving to /config/data/metadata/People/A/Akela Cooper/folder.jpg. Will retry saving to /config/data/metadata/library/87/8722a76108cab57b74791cefbdf66b18/folder.jpg
System.IO.IOException: The process cannot access the file ‘/config/data/metadata/People/A/Akela Cooper/folder.jpg’ because it is being used by another process.
at Microsoft.Win32.SafeHandles.SafeFileHandle.Init(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Int64& fileLength, UnixFileMode& filePermissions)
at Microsoft.Win32.SafeHandles.SafeFileHandle.Open(String fullPath, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, UnixFileMode openPermissions, Int64& fileLength, UnixFileMode& filePermissions, Boolean failForSymlink, Boolean& wasSymlink, Func4 createOpenException) at System.IO.Strategies.OSFileStreamStrategy..ctor(String path, FileMode mode, FileAccess access, FileShare share, FileOptions options, Int64 preallocationSize, Nullable1 unixCreateMode)
at System.IO.FileStream..ctor(String path, FileStreamOptions options)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, CancellationToken cancellationToken)
at MediaBrowser.Providers.Manager.ImageSaver.SaveImageToLocation(Stream source, String path, String retryPath, CancellationToken cancellationToken)
[22:19:12] [INF] [31] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Moana 2 HD Online.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:13] [INF] [28] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Lion King.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:14] [INF] [25] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Penguin Friend.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:19] [INF] [8] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Roadworthy Rescues 05.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:20] [INF] [31] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Roadworthy Rescues 06.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:22] [INF] [25] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Snow Chick - A Penguins Tale.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:22] [INF] [8] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Super Icyclone.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:51] [INF] [19] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Magic Penguin.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:55] [INF] [25] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Tyler Perrys Madeas Tough Love.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:19:55] [INF] [25] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Unbreakable Boy 2025.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:20:01] [INF] [8] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Electric State 2025.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:20:09] [INF] [28] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/A_Deadly_American_Marriage_2025.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[mov,mp4,m4a,3gp,3g2,mj2 @ 0x560a279a4480] Detected creation time before 1970, parsing as unix timestamp.
Last message repeated 1 times
[mov,mp4,m4a,3gp,3g2,mj2 @ 0x560a279a4480] Duplicated SDTP atom
[22:20:11] [INF] [8] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/How_to_Train_Your_Dragon_2025.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[mov,mp4,m4a,3gp,3g2,mj2 @ 0x558f25e18480] Detected creation time before 1970, parsing as unix timestamp.
Last message repeated 1 times
[mov,mp4,m4a,3gp,3g2,mj2 @ 0x558f25e18480] Duplicated SDTP atom
[22:20:15] [INF] [17] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Snow_White_2025.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:20:17] [INF] [25] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Wizard_of_Oz__Dead_Walk.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[mov,mp4,m4a,3gp,3g2,mj2 @ 0x55f3a0884480] Detected creation time before 1970, parsing as unix timestamp.
Last message repeated 1 times
[mov,mp4,m4a,3gp,3g2,mj2 @ 0x55f3a0884480] Duplicated SDTP atom
[22:20:22] [INF] [6] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Honeymooners.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:20:34] [INF] [8] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Pitch Perfect 3.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:20:38] [INF] [22] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Internship.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:20:41] [INF] [17] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/Crazy Old Lady.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
[22:35:01] [INF] [31] Emby.Server.Implementations.IO.LibraryMonitor: Movies (/Media/Movies) will be refreshed.
[22:35:01] [INF] [33] MediaBrowser.MediaEncoding.Encoder.MediaEncoder: Starting /usr/lib/jellyfin-ffmpeg/ffprobe with args -analyzeduration 200M -probesize 1G -i file:“/Media/Movies/The Italians.mp4” -threads 0 -v warning -print_format json -show_streams -show_chapters -show_format
root@ZimaOS:/root ➜ #

gelbuilding · January 16, 2026, 4:43am

Good news, Jellyfin is healthy. Your logs confirm it’s running normally and scanning your media (/Media/Movies). So Jellyfin is not the issue here.

That means the 502 Bad Gateway is 100% Nginx Proxy Manager forwarding to the wrong target.

Fix (only setting that matters)

In Nginx Proxy Manager > Proxy Hosts > benshoff.duckdns.org > Details, set:

Scheme: http
Forward Hostname / IP: jellyfin
Forward Port: 8096
Websockets: ON

Do not forward to:

your public IP (174.xxx)
the router IP
changing/random IPs

Using the container name jellyfin is the most stable and won’t break after outages/restarts.

Backup (so you don’t have to rebuild again)

Back up these folders (this is where all settings live):

/DATA/AppData/nginxproxymanager
/DATA/AppData/jellyfin
/DATA/AppData/duckdns

Copy/paste backup command (recommended, saves to DATA)

tar -czvf /DATA/zima_backup_$(date +%F).tar.gz /DATA/AppData/nginxproxymanager /DATA/AppData/jellyfin /DATA/AppData/duckdns

This will create a file like:

/DATA/zima_backup_2026-01-16.tar.gz

If you post a screenshot of your NPM Proxy Host “Details” page, I can confirm the forwarding is correct.

gelbuilding · January 16, 2026, 5:03am

This shows the exact issue.

The error
You ran:

docker exec -it nginxproxymanager curl -I http://192.168.1.50:8097

and got:

curl: (56) Recv failure: Connection reset by peer

Meaning: Nginx Proxy Manager cannot reach Jellyfin at that address, so it returns 502 Bad Gateway.

The good part
Jellyfin is running fine:

Up 2 hours ... 0.0.0.0:8097->8096/tcp ... jellyfin

Fix
In NPM Proxy Host set:

Scheme: http
Forward Hostname/IP: jellyfin
Forward Port: 8096

Save and restart both containers.

MrPenguin · January 16, 2026, 5:51am

After backup it said this:

tar: /DATA/AppData/duckdns: Cannot stat: No such file or directory
tar: Exiting with failure status due to previous errors
root@ZimaOS:/root ➜

Also I got told to change it to 8097 port in the past. Its been that way, and it was working. Moved it back to 8096.

gelbuilding · January 16, 2026, 6:03am

Perfect update - this actually clears things up.

1) Backup error (what it means)

You got:

tar: /DATA/AppData/duckdns: Cannot stat: No such file or directory

That simply means you do not have a folder called:

/DATA/AppData/duckdns

So the backup command failed because that path does not exist.

Fix: first find the correct folder name:

ls -lah /DATA/AppData | grep -i duck

Whatever it shows (example: duckdns or DuckDNS etc) is what you must use in the tar command.

If nothing shows, then duckdns is not stored in AppData (or you installed it a different way).

2) Port confusion (8097 vs 8096) - straight answer

You are mixing host port vs container port.

Your docker output shows this:

8097 -> 8096

Meaning:

8097 is the ZimaOS/host port (what you type in browser)
8096 is Jellyfin internal container port (what NPM must forward to)

In Nginx Proxy Manager your screenshot is correct:

Forward hostname: jellyfin
Forward port: 8096

NOT 8097.

So yes: keep it on 8096 in NPM even if your browser uses 8097.

3) Quick reminder so it stops breaking

In NPM you should never point to your public IP like 174.x.x.x and you should never use 172.17.x.x manually.

Always use:

Forward hostname: jellyfin
Forward port: 8096

That stays correct even after reboots/power outages.

MrPenguin · January 16, 2026, 6:13am

Here is the output of the last command you gave me.
drwxr-xr-x 3 1000 samba 4.0K Dec 13 22:52 DuckDNS

So I will rerun the script for backup using the correct format.

even after restart of jellyfin and nginx dockers. same old 502 gateway error

gelbuilding · January 16, 2026, 12:13pm

thanks, that output helps a lot.

1) Backup folder name

Your DuckDNS folder is case sensitive. Yours is:

/DATA/AppData/DuckDNS

So your backup command must match that exactly:

tar -czvf zima_backup_$(date +%F).tar.gz /DATA/AppData/nginxproxymanager /DATA/AppData/jellyfin /DATA/AppData/DuckDNS

2) About the 502 Bad Gateway (this is the real issue)

A 502 from Nginx Proxy Manager means only one thing:

NPM cannot reach Jellyfin on the address/port you configured.

So let’s stop guessing and confirm it properly.

Run this:

docker exec -it nginxproxymanager curl -I http://jellyfin:8096

Expected result should be something like HTTP/1.1 200 OK or 302 Found.

If you get an error (timeout / connection refused), then NPM cannot reach Jellyfin, which causes 502.

3) Important: don’t use wrong IPs

Do NOT point NPM to:

your public IP (174.x.x.x)
docker IP (172.17.x.x)
router IP

In NPM the correct setup is always:

Forward hostname: jellyfin
Forward port: 8096

If you paste the output of that curl command, I can tell you immediately what’s wrong in 1 step.

Does anybody do one to one help with setting up Zima OS?

1) 502 Bad Gateway

2) “Communication with the API failed”

502 Bad Gateway = NPM can’t reach Jellyfin

Fix (do this only)

One rule to stop this happening again

| \ | | _ | / | | | | |) | |/| | | |\ | __/| | | | || _|| || |_|

User: npm PUID:0 ID:0 GROUP:0 Group: npm PGID:0 ID:0

| \ | | _ | / | | | | |) | |/| | | |\ | __/| | | | || _|| || |_|

User: npm PUID:0 ID:0 GROUP:0 Group: npm PGID:0 ID:0

502 is happening because NPM is forwarding to the WRONG place

Fix (simple)

Why container name “jellyfin” may not work here

There are TWO different “IPs” people talk about

OK to use in Nginx Proxy Manager

Never use in Nginx Proxy Manager

Why you STILL get 502

Do this EXACTLY (no guessing)

If it still shows 502 after this

One-line summary

The 3 addresses (this is the key)

Why you’re getting 502

The stable fix (so you don’t have to keep touching settings)

Why this solves it permanently

1) Confirm Jellyfin is running and reachable locally first

2) The most common cause

3) Very important (so this stops happening)

Fix (only setting that matters)

Backup (so you don’t have to rebuild again)

Copy/paste backup command (recommended, saves to DATA)

1) Backup error (what it means)

2) Port confusion (8097 vs 8096) - straight answer

3) Quick reminder so it stops breaking

1) Backup folder name

2) About the 502 Bad Gateway (this is the real issue)

3) Important: don’t use wrong IPs

| \ | | _ | / |
| | | |) | |/| |
| |\ | __/| | | |
|| _|| || |_|

User: npm PUID:0 ID:0 GROUP:0
Group: npm PGID:0 ID:0

| \ | | _ | / |
| | | |) | |/| |
| |\ | __/| | | |
|| _|| || |_|

User: npm PUID:0 ID:0 GROUP:0
Group: npm PGID:0 ID:0
