Cannot get zima client to connect

Operating System ZimaOS
1

hi all,
installed zimaOS (moved from casaos). I had the zima client on a test server and when I built the production server zima client can’t connect to the server, yet i can access the web gui (changed to port 8080) fine.

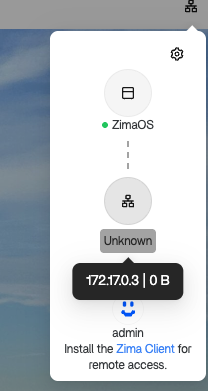

Not sure if this is related but when I click on the network icon on the top right, i get this:

Screenshot 2025-06-25 at 1.21.55 PM
Screenshot 2025-06-25 at 1.21.55 PM208×391 30 KB

the ip it shows 172… is not the servers ip whcih is 10.0.22.99

If i go to the cli and type nmcli con show is get
NAME UUID TYPE DEVICE
ZimaCube-eth0 c634ee4a-e0b2-463e-81f9-06de4a00cd6b ethernet eth0
ztd2nlhb6b a19395d8-c521-4d4e-91e6-e5dbd26c9612 tun ztd2nlhb6b
br-2b69a53b5a27 6f1c498a-4048-4581-bafd-850d4e4a3d0d bridge br-2b69a53b5a27
docker0 d9ed2753-aebd-4eda-934e-f1fe45b83984 bridge docker0
lo ddec7f4c-f289-4292-866d-c6ad5ecfcc12 loopback lo
virbr0 00bd7b0c-e603-4577-9d6f-d1a79e07f9e2 bridge virbr0
ZimaCube-eth1 ec9ebbeb-fa9e-4c9c-a107-c66cbe14b88e ethernet –

what am i missing?

I did change the interfaces earlier. could this be the problem that zima server is not listening on the proper interface for connections? How can I check that?

root@ZimaOS:~# netstat -t4lnp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 0.0.0.0:48237 0.0.0.0:* LISTEN 1240/rpc.mountd
tcp 0 0 127.0.0.1:46053 0.0.0.0:* LISTEN 1471/zimaos-mod-man
tcp 0 0 0.0.0.0:9993 0.0.0.0:* LISTEN 9371/zerotier-one
tcp 0 0 127.0.0.1:42615 0.0.0.0:* LISTEN 1569/icewhale-files
tcp 0 0 127.0.0.1:42043 0.0.0.0:* LISTEN 1573/zimaos
tcp 0 0 0.0.0.0:7681 0.0.0.0:* LISTEN 1047/ttyd
tcp 0 0 0.0.0.0:8181 0.0.0.0:* LISTEN 2220/docker-proxy
tcp 0 0 0.0.0.0:40121 0.0.0.0:* LISTEN 1569/icewhale-files
tcp 0 0 127.0.0.1:39935 0.0.0.0:* LISTEN 1570/zimaos-local-s
tcp 0 0 127.0.0.1:39647 0.0.0.0:* LISTEN 1572/zimaos-virt-ma
tcp 0 0 127.0.0.1:38315 0.0.0.0:* LISTEN 1566/casaos-install
tcp 0 0 127.0.0.1:38325 0.0.0.0:* LISTEN 1628/zimaos-user
tcp 0 0 0.0.0.0:5355 0.0.0.0:* LISTEN 1416/wsdd2
tcp 0 0 0.0.0.0:5355 0.0.0.0:* LISTEN 1416/wsdd2
tcp 0 0 0.0.0.0:5355 0.0.0.0:* LISTEN 1416/wsdd2
tcp 0 0 127.0.0.1:37927 0.0.0.0:* LISTEN 2958/zimaos-app-man
tcp 0 0 0.0.0.0:3702 0.0.0.0:* LISTEN 1416/wsdd2
tcp 0 0 0.0.0.0:3702 0.0.0.0:* LISTEN 1416/wsdd2
tcp 0 0 0.0.0.0:3702 0.0.0.0:* LISTEN 1416/wsdd2
tcp 0 0 0.0.0.0:35807 0.0.0.0:* LISTEN -
tcp 0 0 0.0.0.0:2049 0.0.0.0:* LISTEN -
tcp 0 0 0.0.0.0:2222 0.0.0.0:* LISTEN 2543/ttyd
tcp 0 0 0.0.0.0:35261 0.0.0.0:* LISTEN 1240/rpc.mountd
tcp 0 0 0.0.0.0:1910 0.0.0.0:* LISTEN 1239/ssdpd
tcp 0 0 127.0.0.1:34373 0.0.0.0:* LISTEN 1078/zimaos-gateway
tcp 0 0 0.0.0.0:51003 0.0.0.0:* LISTEN 1240/rpc.mountd
tcp 0 0 127.0.0.1:33637 0.0.0.0:* LISTEN 1530/zimaos-message
tcp 0 0 0.0.0.0:50137 0.0.0.0:* LISTEN 1242/rpc.statd
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 2224/docker-proxy
tcp 0 0 0.0.0.0:81 0.0.0.0:* LISTEN 2267/docker-proxy
tcp 0 0 0.0.0.0:111 0.0.0.0:* LISTEN 1/systemd
tcp 0 0 0.0.0.0:139 0.0.0.0:* LISTEN 1386/smbd
tcp 0 0 0.0.0.0:443 0.0.0.0:* LISTEN 2297/docker-proxy
tcp 0 0 127.0.0.1:32991 0.0.0.0:* LISTEN 1568/icewhale-files
tcp 0 0 0.0.0.0:445 0.0.0.0:* LISTEN 1386/smbd

2

Hi, would you please provide us with the specs of your machine and the version of the OS?

3

Zima is running on a BreqWatr vm environement. Latest version 1.4.1
I think i know what the issue may be. does the client connecting and the server need to be on the same network (same vlan)?

4

At first, they need to be on the same LAN.

And, you need to ensure there is no firewall(on the router) that may block the connection.

5

Y’a they are on 2 different vlans, but wide open between the 2
