ZimaOS 1.5.1-Beta
Backup App - Source Onedrive Root of drive

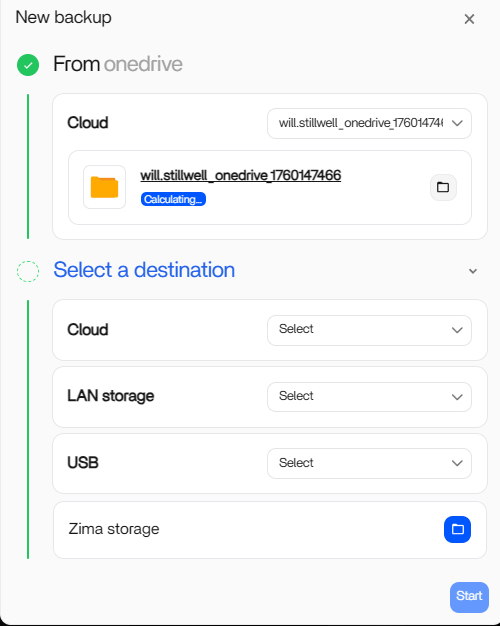

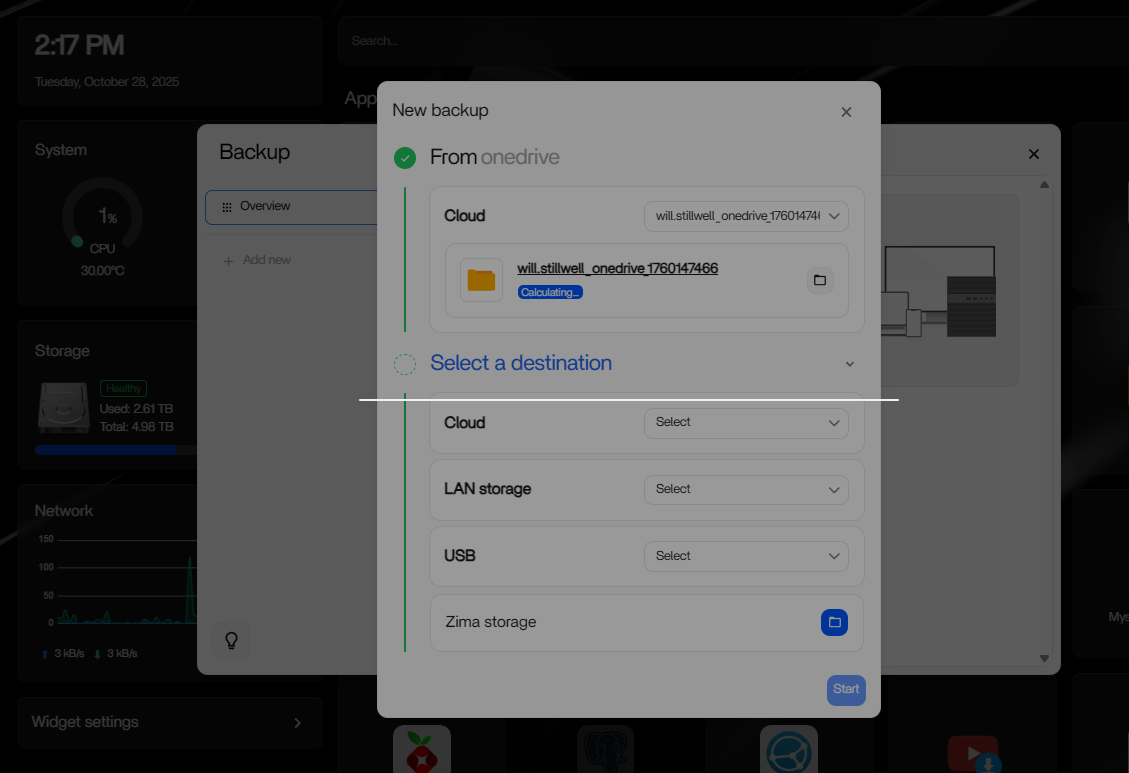

Stuck on Calculating Weird if you try to click ZimaOS Source click on folder.
First picture - added, and it is still just sitting there.
If I click the folder on Zima Storage to choose a destination.
Is there a log I could check via ssh?
You are not booting from an USB drive?
Nope.
Ok, because:
https://community.zimaspace.com/t/backup-app-gui-is-freezing-zimaos-runs-on-external-drive/6237/8

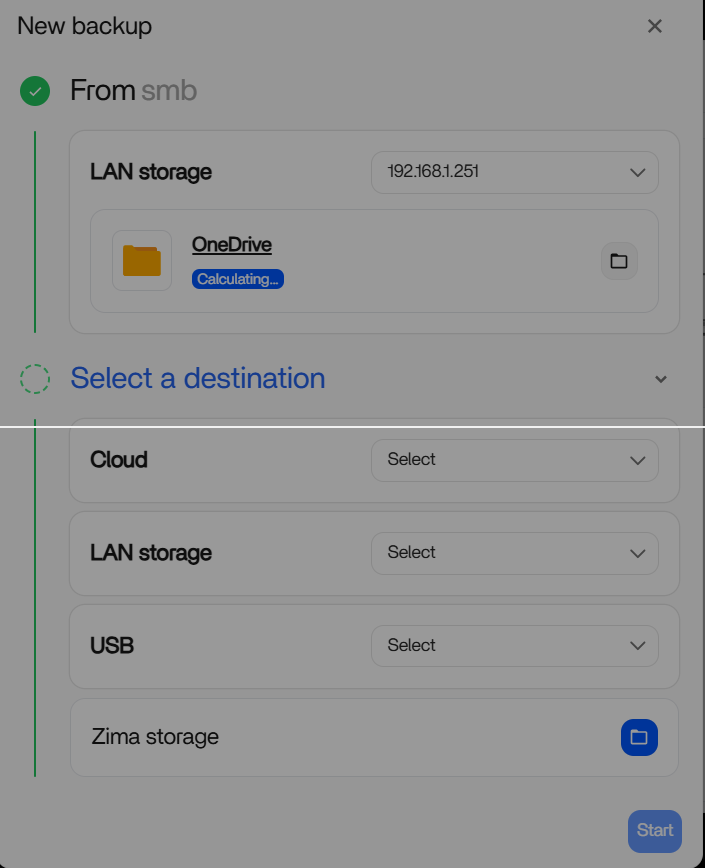

From the onedrive, I was testing the beta fix for using the root of the drive, which allows me to select it, but it is stuck on calculating 400gb of data. So decided to try a backup from a network share of onedrive just as big. Same thing
I’m going to try 1 smaller folder to see if that does the same.

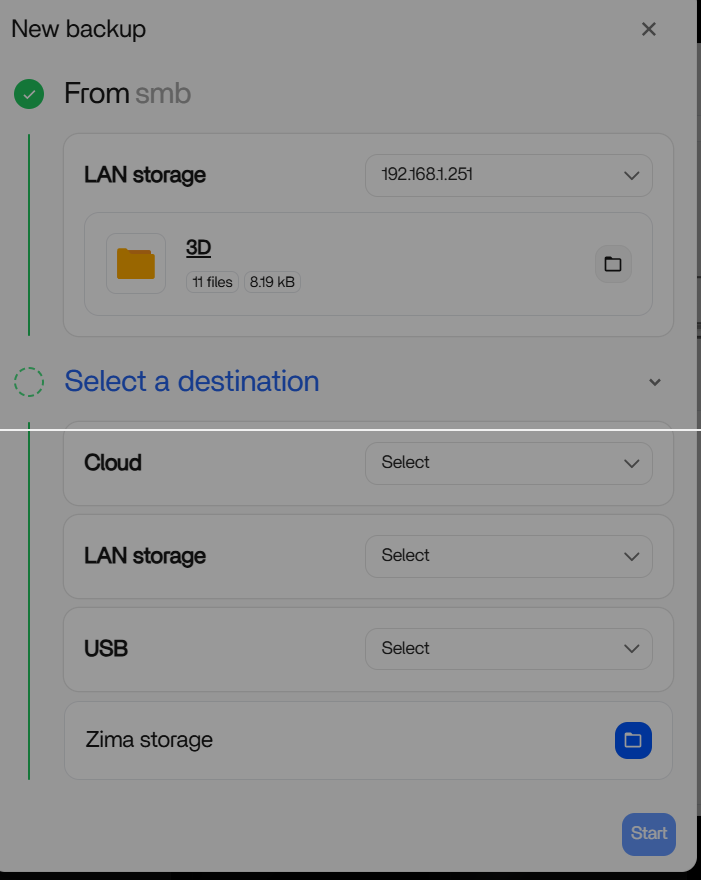

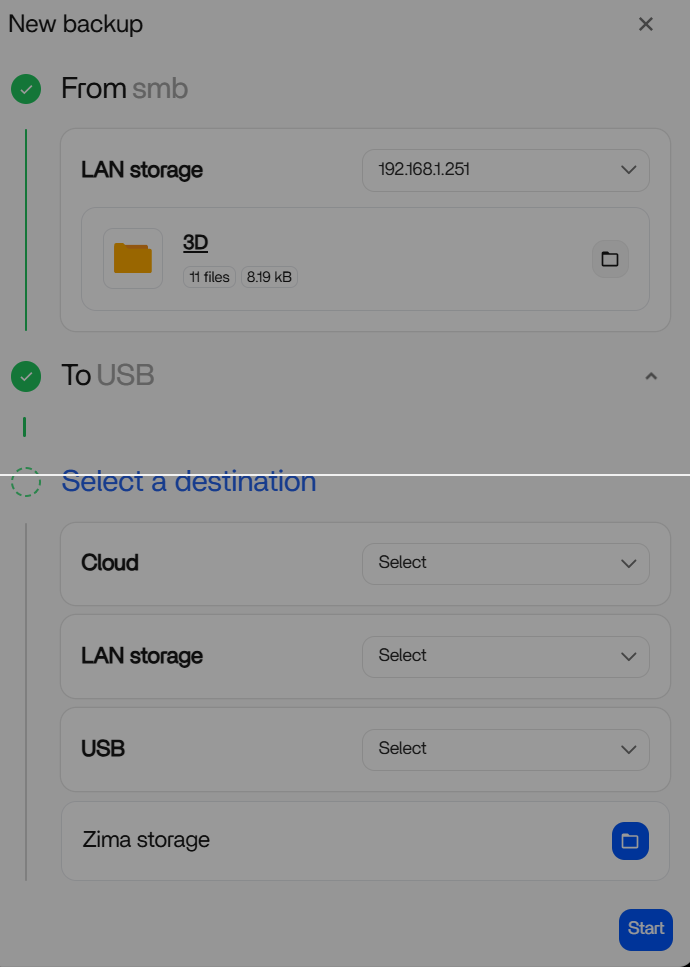

Wow wasn’t expecting that. 1 folder 11 items, fully calculated, but as soon as I clicked on destination Zima Storage it did the same thing.

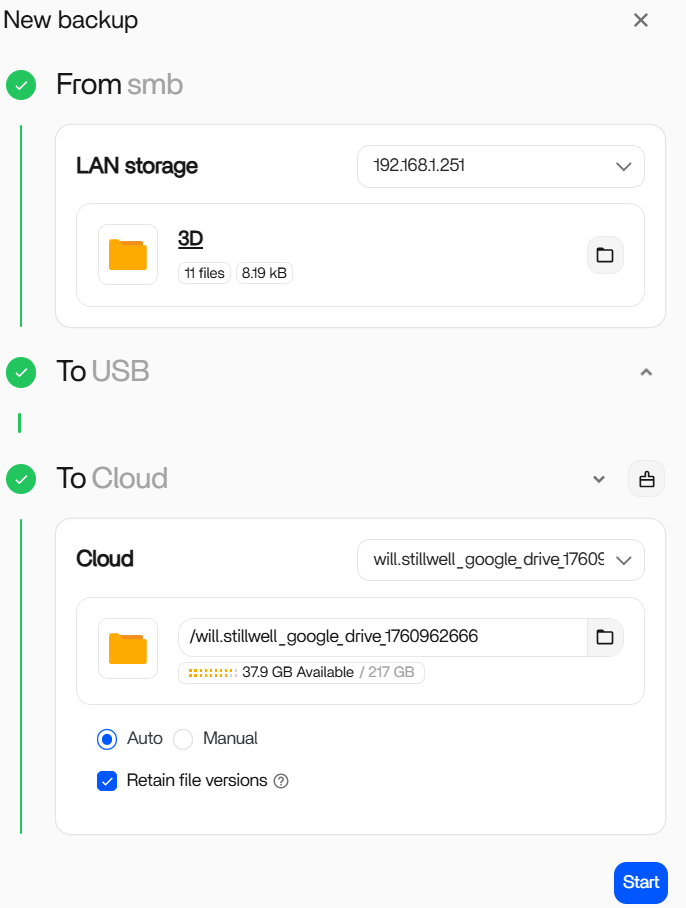

And then removed the google and tried to add Zima Storage again, same issue.
This worked on 1.5.0 for me. I backed up the network share one drive to zima storage sda1.
The last image, what did the target choose, what kind of hardware device it was, can you describe it in detail? I will try to reproduce this problem.
Regarding the cloud drive, we are currently optimizing the experience of cloud drive backup and access functions.
Regarding the UI issue, our engineers are looking at this. I will send you a private message to follow up on this issue. Is that convenient?

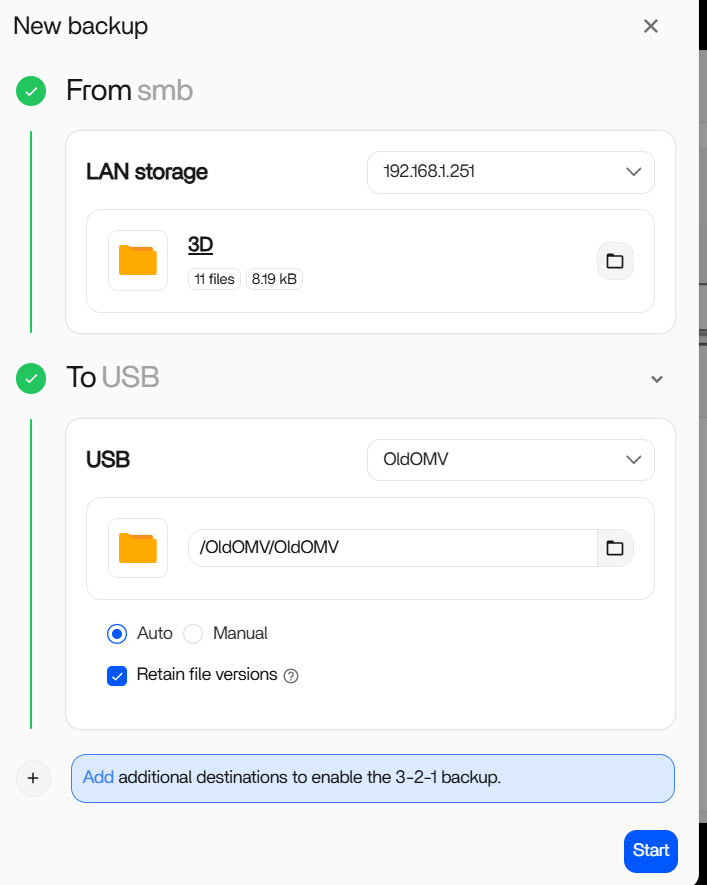

Target, for any of them if I chose Zima Storage, It wouldn’t let me get to pick which Zima Storage to use. Update on the trying to do root of Onedrive, it eventually did finish calculating, and I could have did it’s backup to the USB OldOMV. But Just a few minutes ago I tried to select Zima Storage again, and got the UI bug.

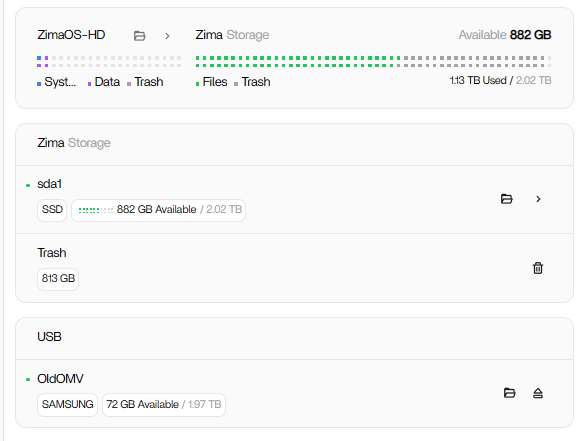

ZimaOS-HD is a 1TB M2 drive
Zima Storage is SDA1 2TB ATA SSD
Connected via USB4 is a 2TB NVME in a USB 3 enclosure.

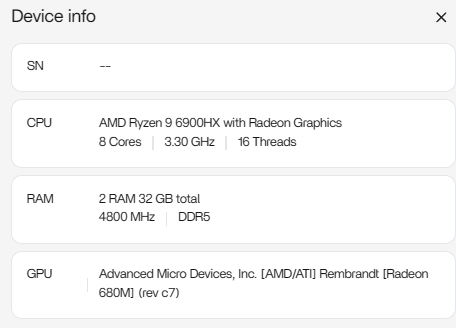

This is a Mini PC Minisforum UM690S
AMD Ryzen 9 6900HX
32gb DDR5 ram
Anytime you need to Private message me feel free. You can even do email if you want.
In line with @dropn9ne description “ZimaOS-HD with USB as the medium, whether it is a backup source or a backup target, it will not display properly, only a line will appear in the middle of the screen”, an issue we expect to fix in 1.5.2
How long would we expect 1.5.2 to be released?
It will probably be in the second half of November
as on the Files thread, it is not USB connected. It is a M2.2280 PCIe4.0 slot on the motherboard directly.
The only USB connected device is SDB1 SDA1 is SATA connected inside the case. ZimaOS-HD is the M2 on the MB.
No issues with this before 1.5.1 Beta1
I need some command line output
lsblk
lspci
lsusb
Run this command on the command line, which can help us determine what type your system disk is currently recognized as and what the index is
curl 'http://localhost/v2/local_storage/disk'
root@ZimaOS:/DATA âžś # lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
loop0 7:0 0 137.3M 1 loop
loop1 7:1 0 10.7M 1 loop
loop2 7:2 0 5.2M 1 loop
loop3 7:3 0 1.1M 1 loop
loop4 7:4 0 208K 1 loop
loop5 7:5 0 4.4M 1 loop
loop6 7:6 0 5.2M 1 loop
loop7 7:7 0 17.8M 1 loop
loop8 7:8 0 208K 1 loop
loop9 7:9 0 1.1M 1 loop
loop10 7:10 0 137.3M 1 loop
loop11 7:11 0 17.8M 1 loop
loop12 7:12 0 4.4M 1 loop
loop13 7:13 0 10.7M 1 loop
loop14 7:14 0 10.7M 1 loop
loop15 7:15 0 1.1M 1 loop
loop16 7:16 0 5.2M 1 loop
loop17 7:17 0 137.3M 1 loop
loop18 7:18 0 4.4M 1 loop
loop19 7:19 0 208K 1 loop
loop20 7:20 0 17.8M 1 loop
sda 8:0 0 1.9T 0 disk
└─sda1 8:1 0 1.9T 0 part /var/lib/casaos_data/.media/sda1
/media/sda1
sdb 8:16 0 1.8T 0 disk
└─sdb1 8:17 0 1.8T 0 part /var/lib/casaos_data/.media/sdb1-ata-Samsung_SSD_990_
/media/sdb1-ata-Samsung_SSD_990_
nbd0 43:0 0 0B 0 disk
nbd1 43:32 0 0B 0 disk
nbd2 43:64 0 0B 0 disk
nbd3 43:96 0 0B 0 disk
nbd4 43:128 0 0B 0 disk
nbd5 43:160 0 0B 0 disk
nbd6 43:192 0 0B 0 disk
nbd7 43:224 0 0B 0 disk
zram0 252:0 0 0B 0 disk
zram1 252:1 0 0B 0 disk
zram2 252:2 0 0B 0 disk
nvme0n1 259:0 0 953.9G 0 disk
├─nvme0n1p1 259:1 0 32M 0 part /mnt/boot
├─nvme0n1p2 259:2 0 24M 0 part
├─nvme0n1p3 259:3 0 6G 0 part
├─nvme0n1p4 259:4 0 24M 0 part
├─nvme0n1p5 259:5 0 6G 0 part /
├─nvme0n1p6 259:6 0 8M 0 part
├─nvme0n1p7 259:7 0 96M 0 part /var/lib/rauc
│ /var/lib/zerotier-one
│ /mnt/overlay
└─nvme0n1p8 259:8 0 941.7G 0 part /var/log
/var/lib/libvirt
/var/lib/icewhale
/var/lib/extensions
/var/lib/docker
/var/lib/casaos
/var/lib/bluetooth
/opt
/media
/var/lib/casaos_data
/DATA
nbd8 43:256 0 0B 0 disk
nbd9 43:288 0 0B 0 disk
nbd10 43:320 0 0B 0 disk
nbd11 43:352 0 0B 0 disk
nbd12 43:384 0 0B 0 disk
nbd13 43:416 0 0B 0 disk
nbd14 43:448 0 0B 0 disk
nbd15 43:480 0 0B 0 disk
root@ZimaOS:/DATA âžś # lspci
00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe Root Complex (rev 01)
00:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD] Family 17h-19h IOMMU
00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe Dummy Host Bridge (rev 01)
00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe GPP Bridge
00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe Dummy Host Bridge (rev 01)
00:02.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe GPP Bridge
00:02.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe GPP Bridge
00:02.4 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe GPP Bridge
00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe Dummy Host Bridge (rev 01)
00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 19h USB4/Thunderbolt PCIe tunnel
00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe Dummy Host Bridge (rev 01)
00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h PCIe Dummy Host Bridge (rev 01)
00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h Internal PCIe GPP Bridge (rev 10)
00:08.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h Internal PCIe GPP Bridge (rev 10)
00:08.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h-19h Internal PCIe GPP Bridge (rev 10)
00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 71)
00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Rembrandt Data Fabric: Device 18h; Function 0
00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Rembrandt Data Fabric: Device 18h; Function 1
00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Rembrandt Data Fabric: Device 18h; Function 2
00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Rembrandt Data Fabric: Device 18h; Function 3
00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Rembrandt Data Fabric: Device 18h; Function 4
00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Rembrandt Data Fabric: Device 18h; Function 5
00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Rembrandt Data Fabric: Device 18h; Function 6
00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Rembrandt Data Fabric: Device 18h; Function 7
01:00.0 USB controller: ASMedia Technology Inc. ASM2142/ASM3142 USB 3.1 Host Controller
02:00.0 Ethernet controller: Intel Corporation Ethernet Controller I226-V (rev 04)
03:00.0 Network controller: MEDIATEK Corp. MT7921 802.11ax PCI Express Wireless Network Adapter
04:00.0 Non-Volatile memory controller: Kingston Technology Company, Inc. OM8PGP4 NVMe PCIe SSD (DRAM-less)
35:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Rembrandt [Radeon 680M] (rev c7)
35:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Rembrandt Radeon High Definition Audio Controller
35:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 19h PSP/CCP
35:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Rembrandt USB4 XHCI controller #3
35:00.4 USB controller: Advanced Micro Devices, Inc. [AMD] Rembrandt USB4 XHCI controller #4
35:00.5 Multimedia controller: Advanced Micro Devices, Inc. [AMD] ACP/ACP3X/ACP6x Audio Coprocessor (rev 60)
35:00.6 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h/19h HD Audio Controller
36:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev a1)
37:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Rembrandt USB4 XHCI controller #8
37:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Rembrandt USB4 XHCI controller #5
37:00.4 USB controller: Advanced Micro Devices, Inc. [AMD] Rembrandt USB4 XHCI controller #6
37:00.5 USB controller: Advanced Micro Devices, Inc. [AMD] Rembrandt USB4/Thunderbolt NHI controller #1
root@ZimaOS:/DATA âžś # lsusb
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 005 Device 002: ID 0e8d:7961 MediaTek Inc. Wireless_Device
Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 006 Device 002: ID 0bda:9210 Realtek Semiconductor Corp. RTL9210 M.2 NVME Adapter
Bus 007 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 008 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 009 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 010 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 011 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 012 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
root@ZimaOS:/DATA âžś # curl 'http://localhost/v2/local_storage/disk'
{"data":[{"avail":"906430343168","children":[{"avail":32720896,"file_system":"FAT16","mount_point":"/mnt/boot","name":"nvme0n1p1","path":"/dev/nvme0n1p1","raid":false,"raid_level":-1,"size":33554432,"storage_name":"boot","supported":true,"used":749568},{"avail":0,"file_system":"squashfs","mount_point":"","name":"nvme0n1p2","path":"/dev/nvme0n1p2","raid":false,"raid_level":-1,"size":25165824,"supported":false,"used":0},{"avail":0,"file_system":"squashfs","mount_point":"","name":"nvme0n1p3","path":"/dev/nvme0n1p3","raid":false,"raid_level":-1,"size":6442450944,"supported":false,"used":0},{"avail":0,"file_system":"squashfs","mount_point":"","name":"nvme0n1p4","path":"/dev/nvme0n1p4","raid":false,"raid_level":-1,"size":25165824,"supported":false,"used":0},{"avail":0,"file_system":"squashfs","mount_point":"/","name":"nvme0n1p5","path":"/dev/nvme0n1p5","raid":false,"raid_level":-1,"size":6442450944,"storage_name":"/","supported":false,"used":1217265664},{"avail":0,"file_system":"","mount_point":"","name":"nvme0n1p6","path":"/dev/nvme0n1p6","raid":false,"raid_level":-1,"size":8388608,"supported":false,"used":0},{"avail":81264640,"file_system":"ext4","mount_point":"/mnt/overlay","name":"nvme0n1p7","path":"/dev/nvme0n1p7","raid":false,"raid_level":-1,"size":100663296,"storage_name":"overlay","supported":true,"used":256000},{"avail":906316357632,"file_system":"ext4","mount_point":"/var/lib/casaos_data","name":"nvme0n1p8","path":"/dev/nvme0n1p8","raid":false,"raid_level":-1,"size":1011130637824,"storage_name":"casaos_data","supported":true,"used":87773143040}],"children_number":8,"disk_type":"NVME","fs_type":"","health":"true","index":-1,"model":"System","name":"nvme0n1","path":"/dev/nvme0n1","percentage_used":0,"power_on_hours":899,"read_only":false,"rota":false,"serial":"50026B7382D4A108","size":1024209543168,"storage_name":"","support":false,"temperature":28,"vendor":"KINGSTON"},{"avail":"1501093543936","children":[{"avail":1501093543936,"file_system":"ext4","mount_point":"/var/lib/casaos_data/.media/sda1","name":"sda1","path":"/dev/sda1","raid":false,"raid_level":-1,"size":2048406847488,"storage_name":"sda1","supported":true,"used":513992654848}],"children_number":1,"disk_type":"SSD","free":false,"fs_type":"","health":"true","index":9,"model":"T-FORCE 2TB","name":"sda","need_format":false,"path":"/dev/sda","percentage_used":0,"power_on_hours":6032,"read_only":false,"rota":false,"serial":"TPBF2401240040101207","size":2048408248320,"storage_name":"sda1","support":true,"temperature":24,"vendor":"SSD"}],"message":"success"}
root@ZimaOS:/DATA âžś #
I’m heading to bed. I’ll be back online in 8 hours. (or less)
