Hi,
I’m not familiar with NAS and RAID things.
I have 2 6Tb Drives, tested dans working apparently well.

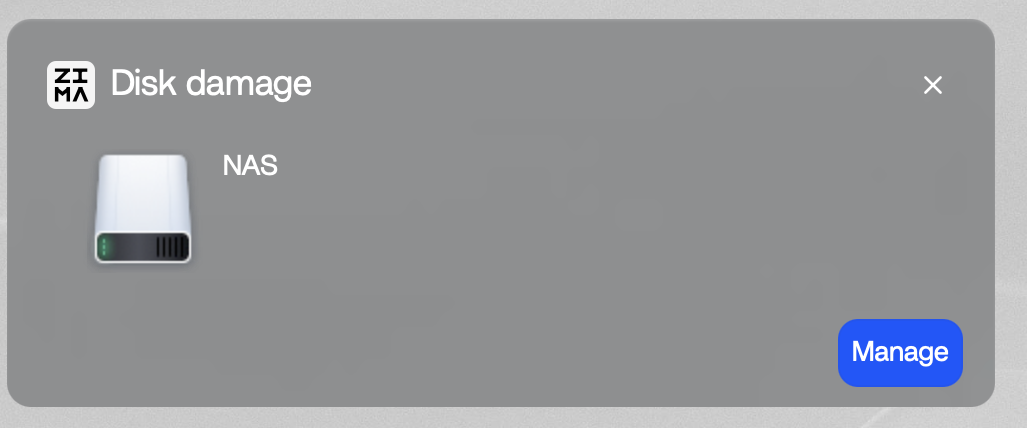

I made a RAID 1 in zimaos but I have strange messages :

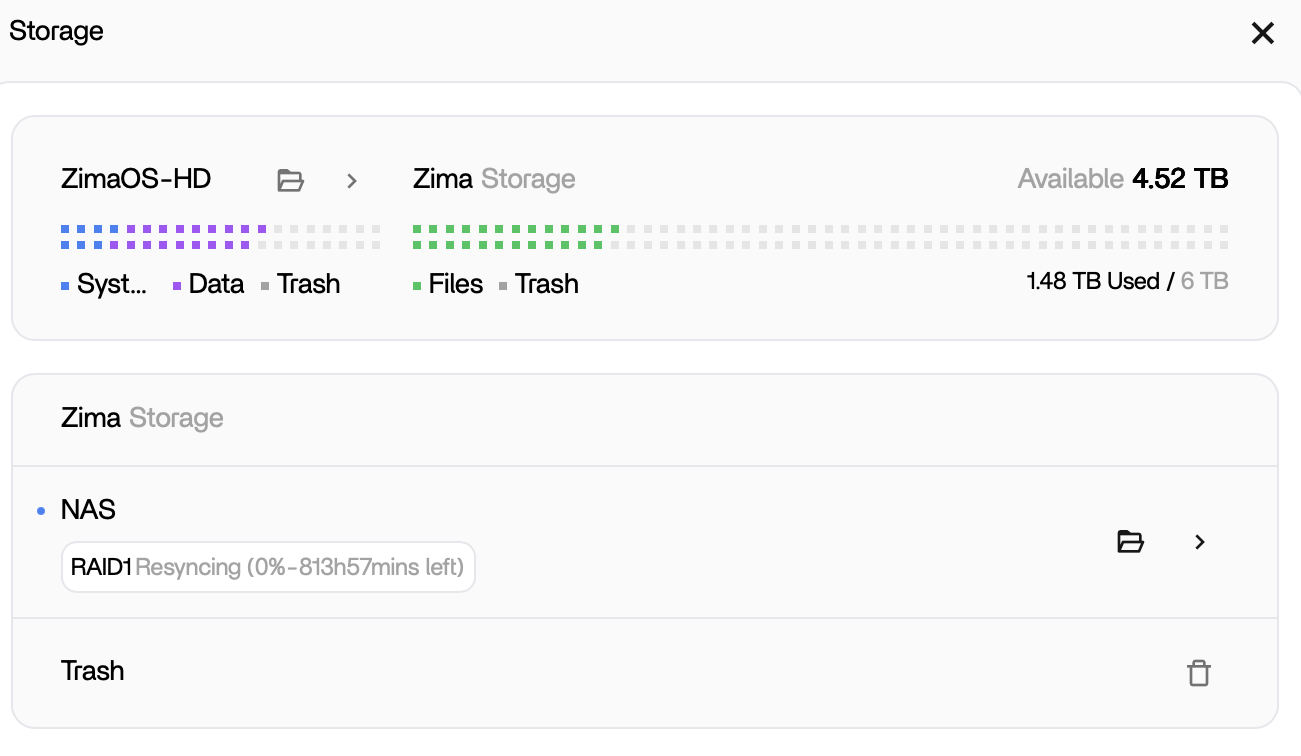

(and I’m surprised because a few minutes ago, the resyncing was different (copy paste for the title :

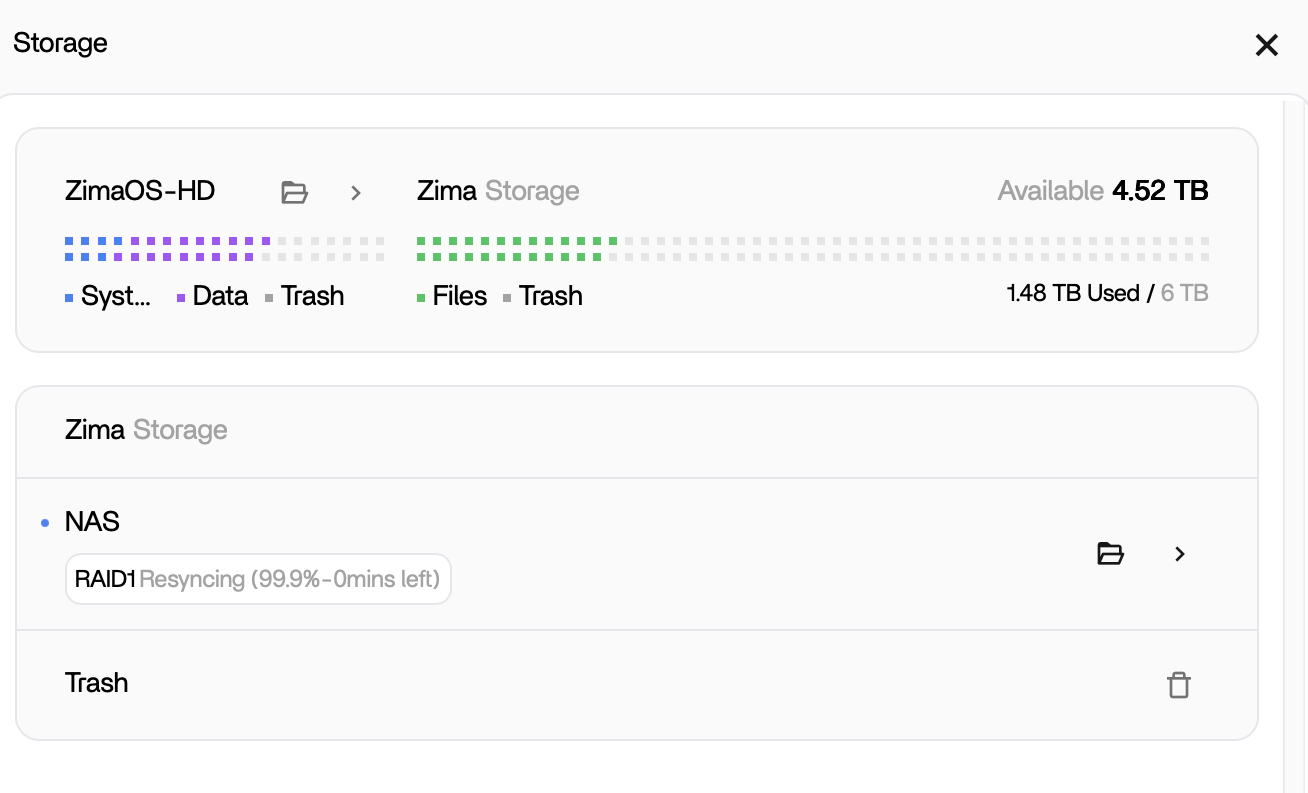

RAID1 Resyncing(99.9%-0mins left) and this message was on screen for a long period of time)
I don’t really understand what is happening and if one drive has a problem

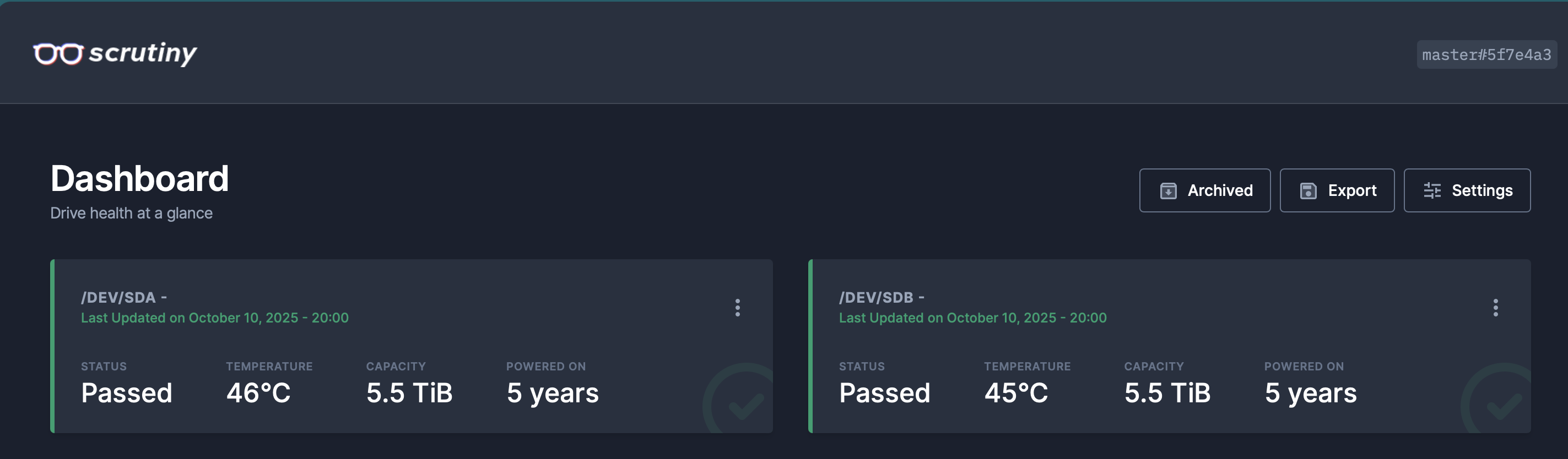

I made some investigations on my side
I don’t see any trouble but my disks are always spinning (no spin down or hibernate)
I think I will use some other OS to avoid problems on my disks
(I have to check how to import RAID array to a non destructive NAS OS… lol)
root@ZimaOS:~# mdadm --detail /dev/md0
/dev/md0:
Version : 1.2
Creation Time : Wed Oct 1 20:31:04 2025
Raid Level : raid1
Array Size : 5860390464 (5.46 TiB 6.00 TB)
Used Dev Size : 5860390464 (5.46 TiB 6.00 TB)
Raid Devices : 2
Total Devices : 2
Persistence : Superblock is persistent
Intent Bitmap : Internal
Update Time : Wed Oct 22 18:17:32 2025
State : clean, resyncing
Active Devices : 2
Working Devices : 2
Failed Devices : 0
Spare Devices : 0
Consistency Policy : bitmap
Resync Status : 99% complete
Name : zimaos:bf5f3a3fef16c1ee
UUID : 0bf2d261:ba27a8cc:02a03fbd:fb0ad44e
Events : 85472232
Number Major Minor RaidDevice State
0 8 0 0 active sync /dev/sda
1 8 16 1 active sync /dev/sdb
root@ZimaOS:~# mdadm --misc --action=check /dev/md0
mdadm: Count not set action for /dev/md0 to check: Device or resource busy
root@ZimaOS:~# smartctl -a /dev/sda
smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.12.25] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: IBM-E050
Product: ST6000NM0014
Revision: BC7B
Compliance: SPC-4
User Capacity: 6,001,175,126,016 bytes [6.00 TB]
Logical block size: 4096 bytes
Formatted with type 2 protection
8 bytes of protection information per logical block
LU is fully provisioned
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Logical Unit id: 0x5000c500869212af
Serial number: Z4D4Z96A0000R726V88Q
Device type: disk
Transport protocol: SAS (SPL-4)
Local Time is: Wed Oct 22 18:18:11 2025 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Enabled
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned <not available>
Power on minutes since format <not available>
Current Drive Temperature: 47 C
Drive Trip Temperature: 65 C
Accumulated power on time, hours:minutes 46275:50
Elements in grown defect list: 0
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 1389956493 0 0 1389956493 0 1944435.580 0
write: 0 0 0 0 0 85493.810 0
verify: 3977211041 0 0 3977211041 0 45028.923 0
Non-medium error count: 44
SMART Self-test log
Num Test Status segment LifeTime LBA_first_err [SK ASC ASQ]
Description number (hours)
# 1 Background short Completed - 1 - [- - -]
Long (extended) Self-test duration: 38632 seconds [10.7 hours]
root@ZimaOS:~# smartctl -a /dev/sdb
smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.12.25] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: IBM-E050
Product: ST6000NM0105 D
Revision: BCC6
Compliance: SPC-4
User Capacity: 6,001,175,126,016 bytes [6.00 TB]
Logical block size: 4096 bytes
Formatted with type 2 protection
8 bytes of protection information per logical block
LU is fully provisioned
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Logical Unit id: 0x5000c500953dd17f
Serial number: ZAD3QNQV0000C829DCVM
Device type: disk
Transport protocol: SAS (SPL-4)
Local Time is: Wed Oct 22 18:18:15 2025 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Temperature Warning: Enabled
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Grown defects during certification <not available>
Total blocks reassigned during format <not available>
Total new blocks reassigned <not available>
Power on minutes since format <not available>
Current Drive Temperature: 46 C
Drive Trip Temperature: 65 C
Accumulated power on time, hours:minutes 46275:52
Elements in grown defect list: 0
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 3019683701 0 0 3019683701 0 2032748.898 0
write: 0 0 0 0 0 153876.335 0
verify: 1111958711 0 0 1111958711 0 44795.245 0
Non-medium error count: 875
SMART Self-test log
Num Test Status segment LifeTime LBA_first_err [SK ASC ASQ]
Description number (hours)
# 1 Background short Completed - 1 - [- - -]
Long (extended) Self-test duration: 38632 seconds [10.7 hours]
Yeah, this one’s pretty common, your setup actually looks spot on. Both drives are healthy, SMART looks clean, and [UU] means the RAID’s fully synced.
The “99.9% – 0 mins left” bit is just a little dashboard hiccup that can show up when running ZimaOS in Proxmox with PCI passthrough. The sync’s already done, the UI just doesn’t refresh properly at the end.
The drives staying awake for a while after that is normal too. ZimaOS keeps them active a bit longer after a rebuild. Once things settle, they’ll quiet down again.
If the message doesn’t clear on its own, a quick reboot of the VM or restart of the storage service usually fixes it straight away.
Ok. Good to know. Thanx.
I’m testing the drives with another VM just to be sure.
I tried turning off the VM (even rebooting the ProxMox node) with no success.
But my issue is the UI never go 100% sync, and the disks (tested at 2 and 3 and 4 am… yeah my nights are complicated) are always on duty.
I can live with an error message due to my setup but looks strange to have the disks always On.
I will eventually try to create a ZFS pool in proxmox and mount it as a drive in ZimaOS VM.
Digging is always a way finding issues
I finally discover a Default on one of my drives… a small D letter after the product name when executing: smartctl -a /dev/sdb
root@ZimaOS:~# smartctl -a /dev/sdb
smartctl 7.4 2023-08-01 r5530 [x86_64-linux-6.12.25] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Vendor: IBM-E050
Product: ST6000NM0105 D
Revision: BCC6
Compliance: SPC-4
Thank youALL for all the information you gave me, I learned a lot !
I’m doing a long SMART test on the drive to correct or identify the default. And maybe change the drive.
I’ll keep you posted.
Your RAID’s perfectly healthy and fully synced, this isn’t a ZimaOS issue but an old Linux mdadm quirk. The system used to pause at 99.9% while it was just tidying up the last blocks, even though the rebuild was already done. Linux later fixed it to say “Cleaning up” instead, but some setups still show the old 99.9% message.
I’ve got ZimaOS running on Proxmox with RAID too and haven’t seen it, so it likely depends on passthrough handling. The drives staying active is harmless, mdadm just keeps light background checks running.
All good on your end, just the classic Linux display bug.
Here are some references:
A technical article explaining “recovery and resync” behavior in Linux.
A real case discussion on “mdadm stalls at 99.9%” which helps show this is known behaviour.
The official mdadm manual page showing how RAID states are reported in Linux
Nice find, Max!
That little “D” just marks a firmware or batch variation, nothing to worry about.
Good call running a long SMART test to be sure. And setting up a ZFS pool in Proxmox is a great way to learn how the layers work, keep us posted on how it goes!
but looks strange to have the disks always On.
